146-9 Series Medium Pressure Test Plug with By-Pass
146-9 Series Medium Pressure Test Plug with By-Pass
SKU:HIG-0605fd
Reliable medium pressure test plug for pipelines, featuring Nitrile seal and customizable configurations. Ensures secure testing without tube wall damage.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
146-9 Series Medium Pressure Test Plug with By-Pass
$299.99
Quantity: 1
Claim Your Seller Account
146-9 Series Medium Pressure Test Plug with By-Pass
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 146-9 Series Medium Pressure Test Plug with By-Pass offers a robust solution for testing pipelines with ease and reliability. Featuring a Nitrile seal for hydrocarbon resistance, this bolt type plug ensures secure testing without damaging the tube walls. With customizable configurations for seal materials and various installation options, it meets the stringent requirements of institutional buyers. Ideal for applications requiring pressure testing up to 250 psig (17 bar) without compromising safety or efficiency.
Product Specifications

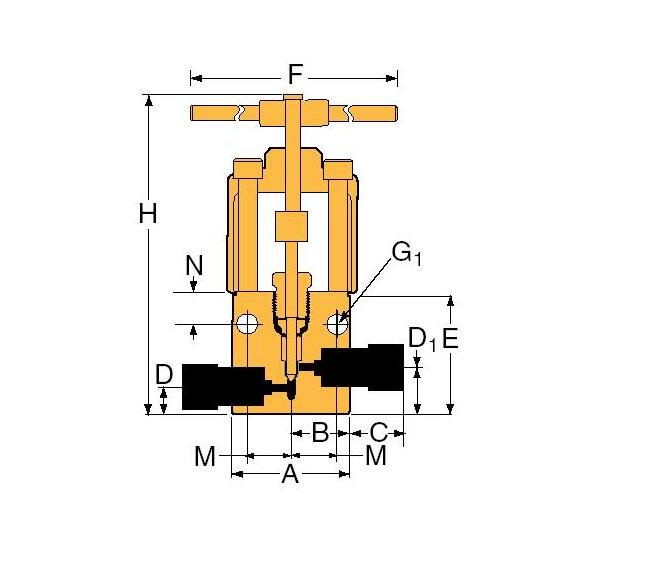

Specifications A Width
3.00 in | 76.20 mm
Specifications Block Thickness
1.38 in | 34.93 mm
Specifications B Length
1.50 in | 38.10 mm
Specifications Connection Type
F562C
Specifications C Length
0.56 in | 14.27 mm
Specifications D1 Height
1.25 in | 31.75 mm
Specifications D Height
0.688 in | 17.48 mm
Specifications E Height
3.25 in | 82.55 mm
Specifications F Length
13.00 in | 330.20 mm
Specifications G1 Diameter
0.50 in | 12.70 mm
Specifications H Height
8.69 in | 220.73 mm
Specifications M Length
1.13 in | 28.58 mm
Specifications N Height
0.88 in | 22.23 mm
Specifications Orifice Diameter
0.188 in | 4.78 mm
Specifications Outside Diameter Tube
9/16 in | 14.27 mm
Specifications Pressure Rating At Room Temperature
50000 psi | 3447 bar
Specifications Rated Cv
0.66
Specifications Stem Type
VEE
Specifications Tubing Engagement Depth
0.87 in | 22.0 mm
Specifications Valve Pattern
2-Way Straight
Valve Maintenance 0
Repair Kits:add "R" to the front of valve catalog number for proper repair kit. (Example: R50Y9071)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found on the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.
Valve Options 0
Extreme TemperaturesStandard Autoclave valves with Teflon packing may be operated to 450°F (232°C). High temperature packing is available for service from 0°F (-17.8°C) to 600°F (316°C) by adding the following suffixes to catalog order number.TG standard valve with Teflon glass packing to 600°F (316°C).B standard valve with cryogenic trim materials and Teflon packing to -100°F (-73°C).
