146-9 Series Medium Pressure Test Plug with By-Pass
146-9 Series Medium Pressure Test Plug with By-Pass
SKU:HIG-84e410
Reliable and safe medium pressure test plug with custom configurations for various institutional needs.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
146-9 Series Medium Pressure Test Plug with By-Pass
$129.99
Quantity: 1
Claim Your Seller Account
146-9 Series Medium Pressure Test Plug with By-Pass
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 146-9 Series Medium Pressure Test Plug with By-Pass offers simple and reliable pipeline testing up to 80 psig. Designed with a Nitrile seal for hydrocarbon resistance, this test plug ensures secure sealing without damaging the pipe. With custom configurations available for various seal materials, sizes, pressures, and temperatures, it meets the stringent requirements of institutional and government procurement. Safety is paramount, as it warns against exceeding maximum pressure limits and provides options for additional safety features like valves and remote placement systems.
Product Specifications

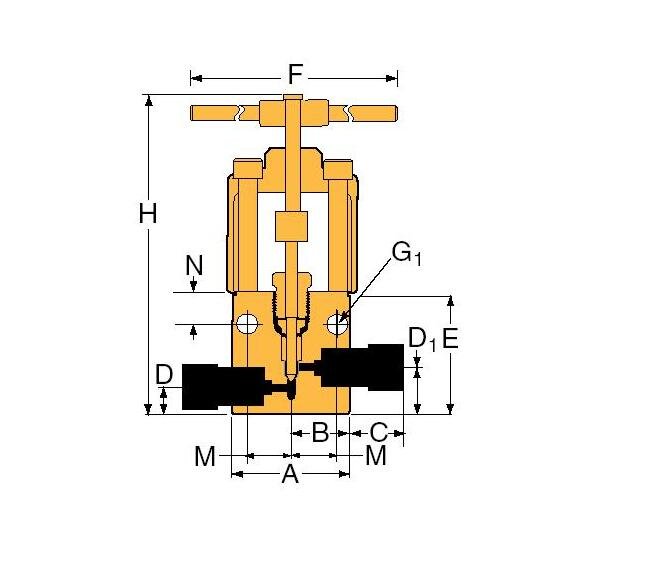

Specifications A Width
4.13 in | 104.9 mm
Specifications Block Thickness
1.75 in | 44.45 mm
Specifications B Length
2.07 in | 52.45 mm
Specifications Connection Type
F1000C43
Specifications C Length
0.72 in | 18.29 mm
Specifications D1 Height
1.88 in | 47.75 mm
Specifications D Height
1.00 in | 25.40 mm
Specifications E Height
4.13 in | 104.78 mm
Specifications F Length
10.25 in | 260.35 mm
Specifications G1 Diameter
0.28 in | 7.11 mm
Specifications H Height
9.56 in | 242.82 mm
Specifications M Length
1.50 in | 38.10 mm
Specifications N Height
1.00 in | 25.40 mm
Specifications Orifice Diameter
0.375 in | 9.53 mm
Specifications Outside Diameter Tube
1 in | 25.4 mm
Specifications Pressure Rating At Room Temperature
43000 psi | 2965 bar
Specifications Rated Cv
2.30
Specifications Stem Type
REG
Specifications Tubing Engagement Depth
1.38 in | 35.0 mm
Specifications Valve Pattern
2-Way Straight
Valve Maintenance 0
Repair Kits:add "R" to the front of valve catalog number for proper repair kit. (Example: R50Y9071)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found on the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.
Valve Options 0
Extreme TemperaturesStandard Autoclave valves with Teflon packing may be operated to 450°F (232°C). High temperature packing is available for service from 0°F (-17.8°C) to 600°F (316°C) by adding the following suffixes to catalog order number.TG standard valve with Teflon glass packing to 600°F (316°C).B standard valve with cryogenic trim materials and Teflon packing to -100°F (-73°C).
