146-9 Series Medium Pressure Test Plug with By-Pass
146-9 Series Medium Pressure Test Plug with By-Pass
SKU:HIG-dff17f
Reliable medium pressure test plug for 5.34 in pipes, Nitrile seals, versatile configurations, up to 25 psig
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
146-9 Series Medium Pressure Test Plug with By-Pass
$129.99
Quantity: 1
Claim Your Seller Account
146-9 Series Medium Pressure Test Plug with By-Pass
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 146-9 Series Medium Pressure Test Plug with By-Pass is designed for simple and reliable testing of pipelines with an inside diameter of 5.34 inches. Made with high-quality materials, including Nitrile seals for hydrocarbon resistance, this bolt type plug ensures secure testing up to 25 psig without causing damage to the tube walls. Custom configurations are available to meet various pressure, temperature, and chemical requirements, making it a versatile solution for institutional and government buyers.
Product Specifications

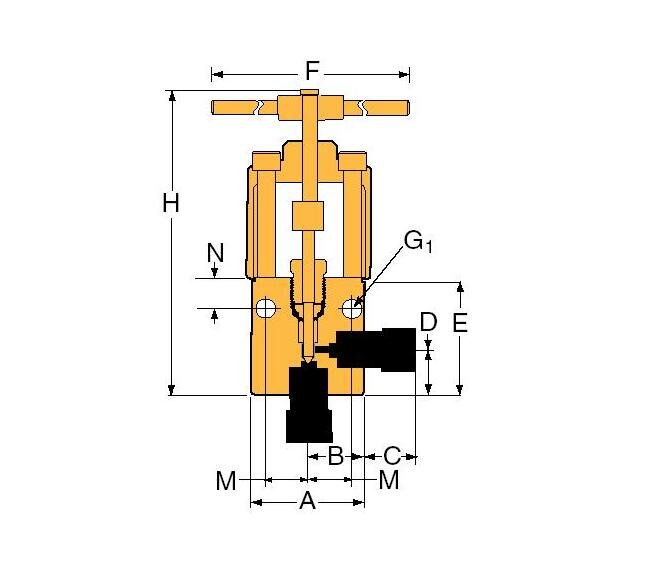

Specifications A Width
4.13 in | 104.9 mm
Specifications Block Thickness
1.75 in | 44.45 mm
Specifications B Length
2.07 in | 52.45 mm
Specifications Connection Type
F1000C43
Specifications C Length
0.72 in | 18.29 mm
Specifications D Height
2.31 in | 58.67 mm
Specifications E Height
4.56 in | 115.82 mm
Specifications F Length
10.25 in | 260.35 mm
Specifications G1 Diameter
0.28 in | 7.11 mm
Specifications H Height
10.80 in | 274.32 mm
Specifications M Length
1.50 in | 38.10 mm
Specifications N Height
1.00 in | 25.40 mm
Specifications Orifice Diameter
0.375 in | 9.53 mm
Specifications Outside Diameter Tube
1 in | 25.4 mm
Specifications Pressure Rating At Room Temperature
43000 psi | 2965 bar
Specifications Rated Cv
2.30
Specifications Stem Type
REG
Specifications Tubing Engagement Depth
1.38 in | 35.0 mm
Specifications Valve Pattern
2-Way Angle
Valve Maintenance 0
Repair Kits:add "R" to the front of valve catalog number for proper repair kit. (Example: R50Y9071)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found on the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.
Valve Options 0
Extreme TemperaturesStandard Autoclave valves with Teflon packing may be operated to 450°F (232°C). High temperature packing is available for service from 0°F (-17.8°C) to 600°F (316°C) by adding the following suffixes to catalog order number.TG standard valve with Teflon glass packing to 600°F (316°C).B standard valve with cryogenic trim materials and Teflon packing to -100°F (-73°C).
