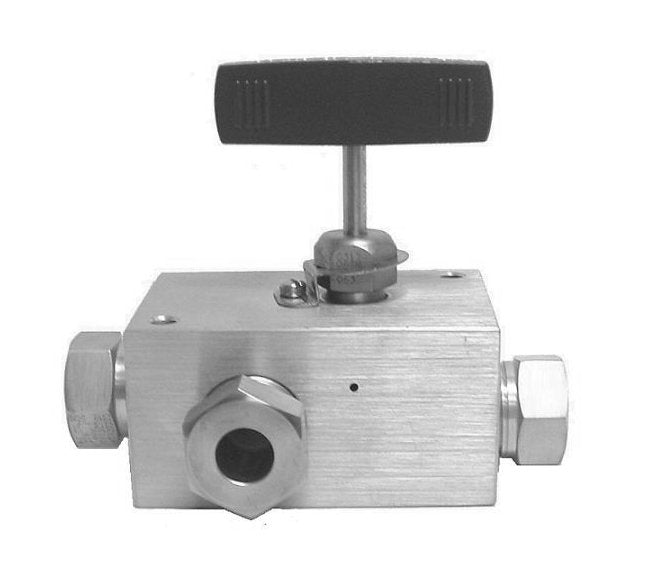

146-9 Series Medium Pressure Test Plug with By-Pass

Name: 146-9 Series Medium Pressure Test Plug with By-Pass
Brand: Parker / Autoclave Engineers
SKU: HIG-3e2f7b
Price: 49.99 USD
Availability: OutOfStock

SKU:HIG-3e2f7b

Reliable and versatile medium pressure test plug with customizable configurations for safe and efficient pipeline testing.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 146-9 Series Medium Pressure Test Plug with By-Pass is a reliable solution for testing pipelines up to 300 psig. Featuring a Nitrile seal for hydrocarbon resistance, this plug ensures secure testing without tube wall damage. Customizable with various seal materials and configurations, it offers versatility for different requirements. With a focus on safety, this plug is designed to prevent slippage and potential property damage. Ensure optimal testing without exceeding system capacities with this durable and efficient bolt type test plug.

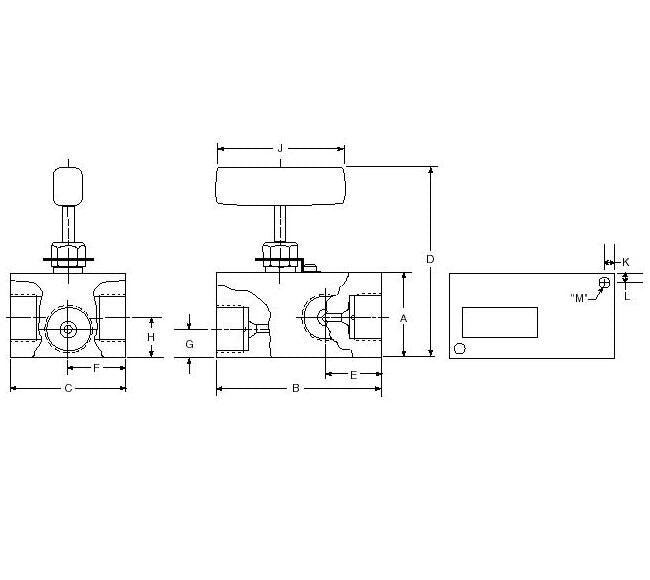

Product Specifications

Specifications A Height

2.00 in | 50.80 mm

Specifications B Length

3.88 in | 98.55 mm

Specifications Connection Size

9/16 in | 14.29 mm

Specifications Connection Type

F562C

Specifications C Width

2.75 in | 69.85 mm

Specifications D Height

4.50 in | 114.30 mm

Specifications E Length

1.31 in | 33.27 mm

Specifications F Length

1.38 in | 34.93 mm

Specifications G Height

0.66 in | 16.76 mm

Specifications H Height

0.94 in | 23.83 mm

Specifications J Length

3.00 in | 76.20 mm

Specifications K Mounting Dimension

0.38 in | 9.70 mm

Specifications L Mounting Dimension

0.38 in | 9.70 mm

Specifications M Mounting Diameter

0.28 in | 7.10 mm

Specifications Orifice Size

0.125 in | 3.18 mm

Specifications Pressure Rating At Room Temperature

30000 psi | 2068 bar

Specifications Rated Cv

0.23

Specifications Tubing Engagement Depth

0.87 in | 22.0 mm

Specifications Valve Pattern

Wellhead Gauge Valve

146-9 Series Medium Pressure Test Plug with By-Pass
