146-9 Series Medium Pressure Test Plug with By-Pass
146-9 Series Medium Pressure Test Plug with By-Pass
SKU:HIG-7e11be
Reliable and durable medium pressure test plug for secure pipeline testing up to 250 psig with Nitrile seals and customizable configurations.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
146-9 Series Medium Pressure Test Plug with By-Pass
$89.99
Quantity: 1
Claim Your Seller Account
146-9 Series Medium Pressure Test Plug with By-Pass
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 146-9 Series Medium Pressure Test Plug with By-Pass is a reliable solution for testing pipelines without causing damage. With a minimum pipe inside diameter of 2.51 inches, rated pressure of 100 psig, and Nitrile seals for hydrocarbon resistance, this plug ensures secure testing up to 250 psig. Custom configurations are available for various size, pressure, temperature, and chemical requirements, making it versatile for different applications. Designed with safety in mind, the plug comes with a mechanical warning for proper usage to prevent property damage or injury.
Product Specifications

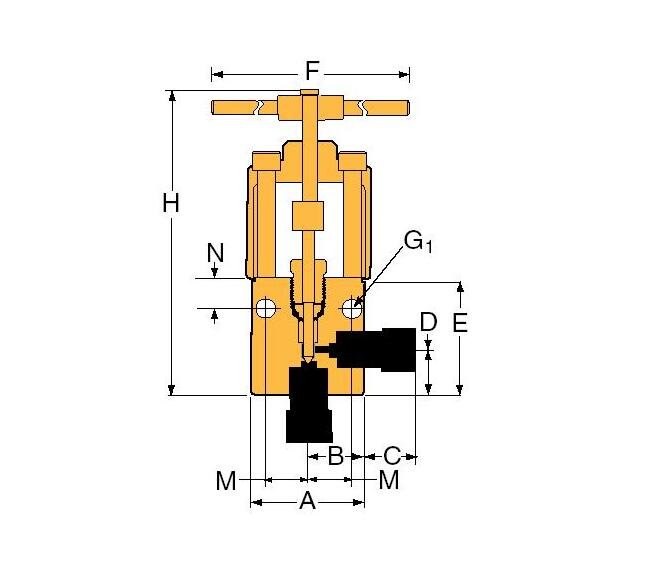

Specifications A Width
3.00 in | 76.20 mm
Specifications Block Thickness
1.38 in | 34.93 mm
Specifications B Length
1.50 in | 38.10 mm
Specifications Connection Type
F562C
Specifications C Length
0.56 in | 14.27 mm
Specifications D Height
1.5 in | 38.1 mm
Specifications E Height
3.50 in | 88.90 mm
Specifications F Length
13.00 in | 330.20 mm
Specifications G1 Diameter
0.50 in | 12.70 mm
Specifications H Height
8.81 in | 223.82 mm
Specifications M Length
1.13 in | 28.58 mm
Specifications N Height
0.88 in | 22.23 mm
Specifications Orifice Diameter
0.188 in | 4.78 mm
Specifications Outside Diameter Tube
9/16 in | 14.27 mm
Specifications Pressure Rating At Room Temperature
50000 psi | 3447 bar
Specifications Rated Cv
0.66
Specifications Stem Type
VEE
Specifications Tubing Engagement Depth
0.87 in | 22.0 mm
Specifications Valve Pattern
2-Way Angle
Valve Maintenance 0
Repair Kits:add "R" to the front of valve catalog number for proper repair kit. (Example: R50Y9071)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found on the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.
