146-9 Series Medium Pressure Test Plug with By-Pass
146-9 Series Medium Pressure Test Plug with By-Pass
SKU:HIG-441d3c
Reliable 146-9 Series Medium Pressure Test Plug with Nitrile Seal for industrial pipe testing, customizable for various applications.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
146-9 Series Medium Pressure Test Plug with By-Pass
$89.99
Quantity: 1
Claim Your Seller Account
146-9 Series Medium Pressure Test Plug with By-Pass
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 146-9 Series Medium Pressure Test Plug with By-Pass offers a reliable solution for testing pipelines with a minimum inside diameter of 2.01 inches. Designed for industrial applications, this plug features a Nitrile seal for hydrocarbon resistance, ensuring a tight seal without damaging the tube wall. With custom configurations available for different seal materials and sizes, this Bolt Type Test Plug simplifies pipe and tubing testing up to 250 psig (17 bar) while meeting stringent high-pressure standards. Ensure safety and efficiency in your testing procedures with the 146-9 Series.
Product Specifications

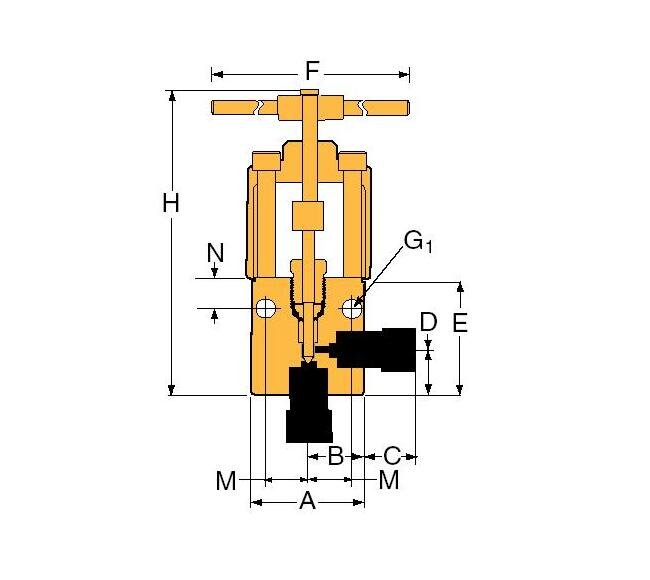

Specifications A Width
4.13 in | 104.78 mm
Specifications Block Thickness
1.75 in | 44.45 mm
Specifications B Length
2.06 in | 52.39 mm
Specifications Connection Type
SF1000CX
Specifications C Length
0.63 in | 15.88 mm
Specifications D Height
2.25 in | 57.15 mm
Specifications E Height
4.50 in | 114.30 mm
Specifications F Length
10.25 in | 260.35 mm
Specifications G1 Diameter
0.28 in | 7.11 mm
Specifications H Height
10.38 in | 263.53 mm
Specifications M Length
1.50 in | 38.10 mm
Specifications N Height
1.13 in | 28.58 mm
Specifications Orifice Diameter
0.562 in | 14.27 mm
Specifications Outside Diameter Tube
1 in | 25.4 mm
Specifications Pressure Rating At Room Temperature
15000 psi | 1034 bar
Specifications Rated Cv
3.15
Specifications Stem Type
REG
Specifications Tubing Engagement Depth
1.38 in | 35.0 mm
Specifications Valve Pattern
2-Way Angle
Valve Maintenance 0
Repair Kits:add "R" to the front of valve catalog number for proper repair kit. (Example: R50Y9071)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found on the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.
