146-9 Series Medium Pressure Test Plug with By-Pass
146-9 Series Medium Pressure Test Plug with By-Pass
SKU:HIG-40414d
Reliable and easy-to-use 146-9 Series Test Plug with By-Pass for pipeline testing up to 300 psig. Customizable seal options.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
146-9 Series Medium Pressure Test Plug with By-Pass
$59.99
Quantity: 1
Claim Your Seller Account
146-9 Series Medium Pressure Test Plug with By-Pass
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 146-9 Series Bolt Type Medium Pressure Test Plug with By-Pass offers exceptional performance for pipeline testing. Featuring Nitrile seals for hydrocarbon resistance, this plug provides reliable testing up to 300 psig (21 bar). Designed for ease of use, simply install into the pipe, tighten the compression nut, and start testing without damaging the tube walls. Custom configurations available for various seal materials and specific requirements.
Product Specifications

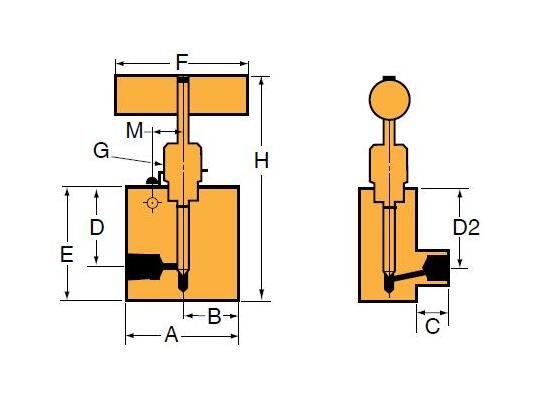

Specifications A Width
1.5 in | 38.10 mm
Specifications Block Thickness
0.63 in | 16.00 mm
Specifications B Length
0.75 in | 19.05 mm
Specifications Connection Type
Tube
Specifications C Length
0.63 in | 15.88 mm
Specifications D2 Height
0.88 in | 22.35 mm
Specifications D Height
0.81 in | 20.57 mm
Specifications E Height
1.38 in | 35.05 mm
Specifications F Length
1.5 in | 38.1 mm
Specifications G Packing Gland Mounting Hole Drill Size
0.61 in | 15.49 mm
Specifications H Height
3.49 in | 88.65 mm
Specifications M Length
0.56 in | 14.22 mm
Specifications Orifice Diameter
0.094 in | 2.39 mm
Specifications Pipetube
1/4 in | 6.35 mm
Specifications Stem Type
VEE
Specifications Tubing Engagement Depth
0.47 in | 11.9 mm
Specifications Valve Pattern
2-Way Straight
Valve Maintenance 0
Repair Kits:add âRâ to the front of valve catalog number for proper repair kit. (Example: RBTV4F2L1)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found on the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.
Valve Options 0
Standard Autoclave valves with Teflon packing may be operated to 450°F (232°C). R regulating stem Autoclave Engineers does not recommend compression sleeve connections below 0°F (-17.8°C) or above 650°F(343°C). For additional valve options, contact your Sales Representative.
