146-9 Series Medium Pressure Test Plug with By-Pass
146-9 Series Medium Pressure Test Plug with By-Pass
SKU:HIG-66a8fe
Reliable and efficient medium pressure test plug for pipelines with 2.88in minimum diameter. Customizable for diverse applications.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order

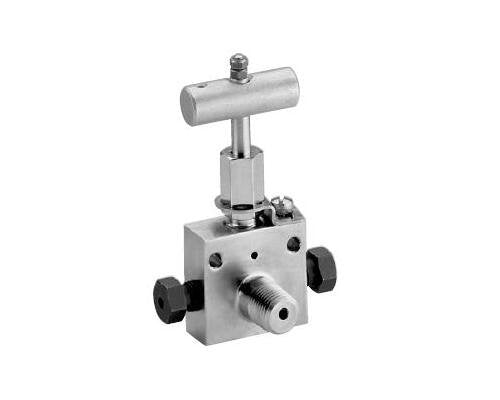

146-9 Series Medium Pressure Test Plug with By-Pass
$89.99
Quantity: 1
Claim Your Seller Account
146-9 Series Medium Pressure Test Plug with By-Pass
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 146-9 Series Medium Pressure Test Plug with By-Pass offers a reliable solution for testing pipelines with a minimum inside diameter of 2.88 inches. Featuring a Nitrile seal for hydrocarbon resistance and plated carbon steel construction, this plug is designed for simple and efficient testing without damaging the tube wall. With a range of custom configurations available, including different seal materials and optional by-pass valves, this test plug ensures versatile application in various pressure, temperature, and chemical environments. Ensure safety and accuracy in testing pipelines up to 250 psig with the 146-9 Series Test Plug.
Product Specifications

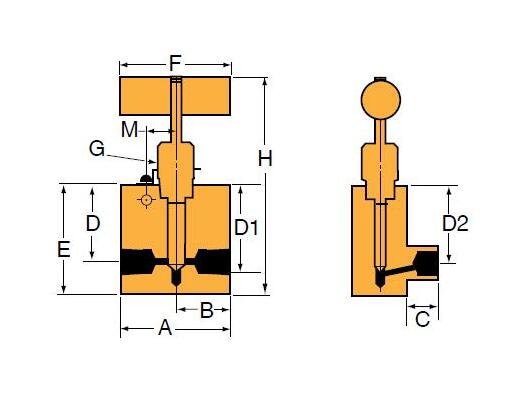

Specifications A Width
1.5 in | 38.10 mm
Specifications Block Thickness
0.75 in | 19.05 mm
Specifications B Length
0.75 in | 19.05 mm
Specifications Connection Type
Tube
Specifications C Length
0.63 in | 15.88 mm
Specifications D1 Height
0.81 in | 20.57 mm
Specifications D2 Height
0.88 in | 22.35 mm
Specifications D Height
0.81 in | 20.57 mm
Specifications E Height
1.38 in | 34.93 mm
Specifications F Length
1.5 in | 38.1 mm
Specifications G Packing Gland Mounting Hole Drill Size
0.75 in | 19.05 mm
Specifications H Height
3.49 in | 88.65 mm
Specifications M Length
0.50 in | 12.70 mm
Specifications Orifice Diameter
0.094 in | 2.39 mm
Specifications Pipetube
1/8 in | 3.18 mm
Specifications Stem Type
VEE
Specifications Tubing Engagement Depth
0.47 in | 11.9 mm
Specifications Valve Pattern
3-Way/1 on Pressure
Valve Maintenance 0
Repair Kits:add âRâ to the front of valve catalog number for proper repair kit. (Example: RBTV4F2L1)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found on the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.
Valve Options 0
Standard Autoclave valves with Teflon packing may be operated to 450°F (232°C). R regulating stem Autoclave Engineers does not recommend compression sleeve connections below 0°F (-17.8°C) or above 650°F(343°C). For additional valve options, contact your Sales Representative.
