146-9 Series Medium Pressure Test Plug with By-Pass
146-9 Series Medium Pressure Test Plug with By-Pass
SKU:HIG-bff972
Safely test pipelines up to 250 psig with the 146-9 Series Medium Pressure Test Plug. Customizable for various requirements and easy to install.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
146-9 Series Medium Pressure Test Plug with By-Pass
$89.99
Quantity: 1
Claim Your Seller Account
146-9 Series Medium Pressure Test Plug with By-Pass
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 146-9 Series Medium Pressure Test Plug with By-Pass is a reliable solution for testing pipelines up to 250 psig without causing damage. Featuring a Nitrile seal for hydrocarbon resistance, this plug ensures secure testing without tube wall damage. With options for custom configurations and various seal materials, this plug is adaptable to different size, pressure, and chemical requirements. Safety is prioritized with mechanical plug warnings included. Install easily, tighten the compression nut, and begin testing with confidence.

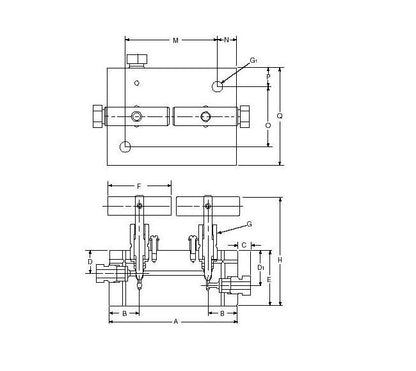

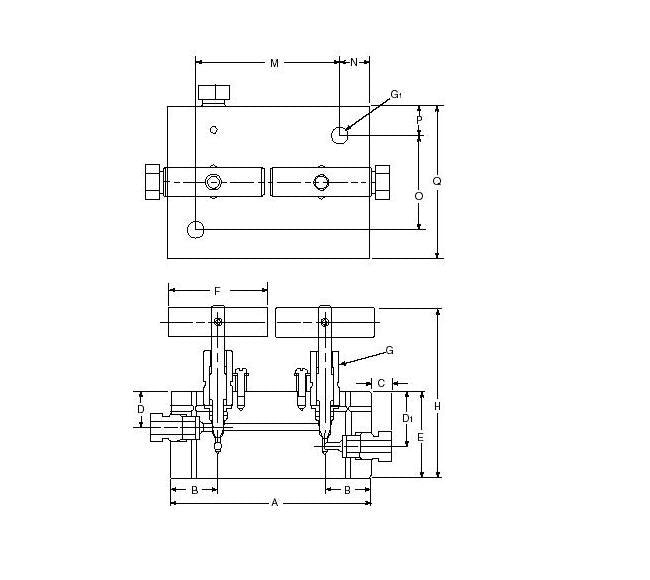

Product Specifications
Specifications A Length
3.50 in | 88.90 mm
Specifications B Length
0.813 in | 20.65 mm
Specifications Connection Type
SF250CX
Specifications C Length
0.38 in | 9.65 mm
Specifications D1 Height
0.938 in | 23.83 mm
Specifications D Height
0.625 in | 15.88 mm
Specifications E Height
1.50 in | 38.1 mm
Specifications F Length
1.75 in | 44.45 mm
Specifications G1 Bracket Mounting Hole Size
0.281 in | 7.14 mm
Specifications G Packing Gland Mounting Hole Drill Size
0.56 in | 14.27 mm
Specifications H Height
2.94 in | 74.68 mm
Specifications M Length
2.50 in | 63.50 mm
Specifications N Length
0.485 in | 12.32 mm
Specifications Orifice Diameter
0.094 in | 2.39 mm
Specifications Outside Diameter Tube
1/4 in | 6.35 mm
Specifications O Length
1.63 in | 41.40 mm
Specifications Pressure Rating At Room Temperature
20000 psi | 1379 bar
Specifications P Length
0.500 in | 12.70 mm
Specifications Q Width
2.625 in | 66.68 mm
Specifications Rated Cv
0.20
Specifications Stem Type
VEE
Specifications Tubing Engagement Depth
0.55 in | 14.0 mm
Valve Options 0
