147 Series 5.37 Inch High Pressure Test Plug

Name: 147 Series 5.37 Inch High Pressure Test Plug
Brand: Parker / Autoclave Engineers
SKU: HIG-d8e5c8
Price: 189.99 USD
Availability: OutOfStock

SKU:HIG-d8e5c8

Petersen® 147 Series 5.37 Inch High Pressure Test Plug for secure sealing and maximum test pressure of 6700 psig. Ideal for various applications.

$189.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 147 Series 5.37 Inch High Pressure Test Plug by Petersen® is designed for maximum pipe inside diameter of 5.37 inches, with a high test pressure of 6700 psig. Perfect for force and water main projects, nuclear cooling lines, and more, this plug ensures secure sealing and efficient testing capabilities. Featuring Neoprene standard seal material and meeting stringent industry standards for durability and reliability, this plug is a must-have for institutional and government procurement needs.

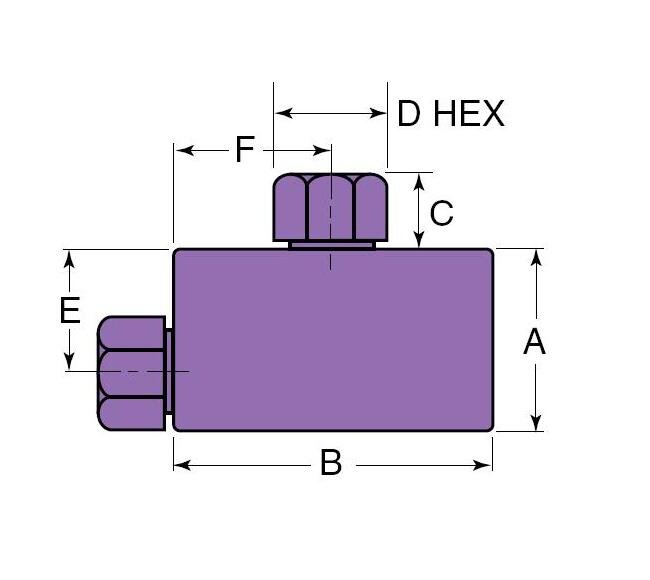

Product Specifications

Specifications A Height

1.38 in | 35.05 mm

Specifications Block Thickness

0.75 in | 19.05 mm

Specifications B Width

2.00 in | 50.80 mm

Specifications Connection Type

SW250

Specifications C Height

0.44 in | 11.18 mm

Specifications D Hex

0.63 in | 16.00 mm

Specifications E Length

1.00 in | 25.40 mm

Specifications F Length

1.00 in | 25.40 mm

Specifications Minimum Opening

0.188 in | 4.78 mm

Specifications Outside Diameter Tube

6.35 mm | 1/4 in

Specifications Pressure Rating

15000 psi | 1034.19 bar

Specifications Tubing Engagement Depth

0.69 in | 17.5 mm

147 Series 5.37 Inch High Pressure Test Plug
