149-2 Series 1.5" Aluminum Body Test Plug
149-2 Series 1.5" Aluminum Body Test Plug
SKU:HIG-8a252d
Enhance testing efficiency with the Petersen® 149-2 Series 1.5" Aluminum Test Plug for secure, reliable pipe sealing in testing operations.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
149-2 Series 1.5" Aluminum Body Test Plug
$89.99
Quantity: 1
Claim Your Seller Account
149-2 Series 1.5" Aluminum Body Test Plug
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your testing operations with the Petersen® 149-2 Series 1.5" Aluminum Body Test Plug. This versatile plug combines the functionality of three plugs in one, featuring a secure seal with pure rubber molded ball and non-rust aluminum castings. The easy-to-operate handles, coated steel construction, and replaceable parts ensure durability and convenient maintenance. With a maximum pipe pressure of 25 psig and adherence to rigorous mechanical plug safety standards, this plug is a reliable choice for testing pipelines up to 1.75" in diameter.

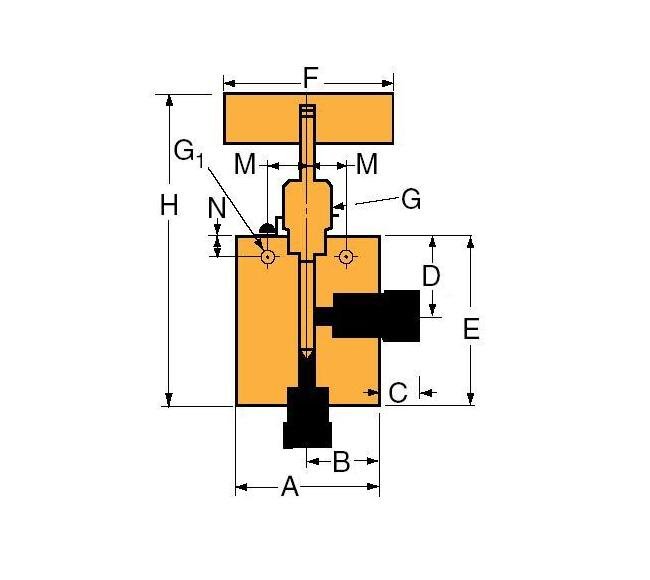

Product Specifications
Specifications A Width
2.62 in | 66.55 mm
Specifications Block Thickness
1.50 in | 38.10 mm
Specifications B Length
1.31 in | 33.27 mm
Specifications Connection Type
F562C40
Specifications C Length
0.72 in | 18.29 mm
Specifications D Height
1.31 in | 33.27 mm
Specifications E Height
2.81 in | 71.37 mm
Specifications F Length
3.00 in | 76.20 mm
Specifications G1 Bracket Mounting Hole Size
0.28 in | 7.11 mm
Specifications G Packing Gland Mounting Hole Drill Size
1.00 in | 25.40 mm
Specifications H Height
5.37 in | 136.40 mm
Specifications M Length
0.69 in | 17.53 mm
Specifications N Height
0.38 in | 9.65 mm
Specifications Orifice Diameter
0.109 in | 2.77 mm
Specifications Outside Diameter Tube
9/16 in | 14.3 mm
Specifications Pressure Rating At Room Temperature
40000 psi | 2760 bar
Specifications Rated Cv
0.28
Specifications Stem Type
VEE
Specifications Tubing Engagement Depth
0.87 in | 22.0 mm
Specifications Valve Pattern
2-Way Angle
Valve Maintenance 0
Repair Kits:add "R" to the front of valve catalog number for proper repair kit. (Example: R40VM9071)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found on the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.
Valve Options 0
Extreme TemperaturesStandard Autoclave valves with Teflon packing may be operated from 0°F (-17.8°C) to 450°F (232°C). High temperature packing is available for service from -423°F (-252°C) to 1200°F (649°C) by adding the following suffixes to catalog order number.TG - standard valve with Teflon glass packing to 600°F (316°C).GY - standard valve with graphite braided yarn packing to 800°F (427°C).HT - extended stuffing box valve with graphite braided yarn packing to 1200°F (649°C).B - standard valve with cryogenic trim material and Teflon packing to -100°F (-73°C).LT - extended stuffing box valve with Teflon packing & Cryogenic trim materials to -423°F (-252°C).
