14CB400 Single Flange CB Element
14CB400 Single Flange CB Element
SKU:CLU-c137d6
High-performance 14CB400 Single Flange CB Element for demanding industrial applications. Compliant with Federal/DoD standards.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
14CB400 Single Flange CB Element
$899.99
Quantity: 1
Claim Your Seller Account
14CB400 Single Flange CB Element
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

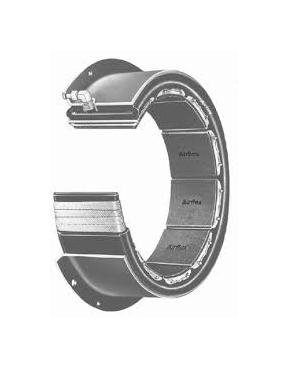

The 14CB400 Single Flange CB Element is a high-performance component designed for demanding industrial applications. With a torque rating of 19700 lb·in, maximum speed of 1800 rpm, and an inertia of 17.0 lb·ft², this element offers exceptional reliability and durability. It features a friction area of 170 in², ensuring smooth and efficient operation. Additionally, it complies with Federal/DoD procurement standards, making it a preferred choice for government and institutional buyers.
Product Specifications
Note 0
Refers to basic part number only. When ordering, the number of air inlets and type of connection must be specified. For example 142087JA, 142087JB, 142087JC, 142087JG

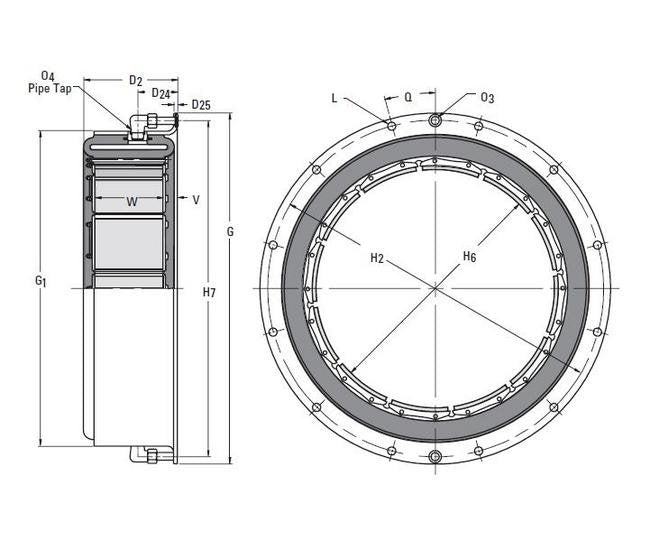

Specifications Air Inlet Thread
3/8-18
Specifications Air Tube Cavity
70 in³ | 1.15 dm³
Specifications Angle Q
11.250 º
Specifications Bolt Hole Size L
0.38 in | 10 mm
Specifications Centrifugal Loss Constant Cs
1.04 E-06 bar/rpm2 | 15.0 E-06 psi/rpm2
Specifications Dimension D2
5.22 in | 133 mm
Specifications Dimension D24
2.00 in | 51 mm
Specifications Dimension D25
0.19 in | 5 mm
Specifications Dimension G
19.625 in | 498.5 mm
Specifications Dimension G1
17.88 in | 454 mm
Specifications Dimension H2
18.875 in | 479.4 mm
Specifications Dimension H6
14.13 in | 359 mm
Specifications Dimension H7
18.88 in | 479 mm
Specifications Dimension O3
0.31 in | 8 mm
Specifications Dimension V
0.69 in | 17 mm
Specifications Friction Area
170 in² | 1096.5 cm²
Specifications Friction Shoe Width W
4.00 in | 102 mm
Specifications Inertia
17.0 lb·ft² | 0.71 kg·m²
Specifications Manufacturer
Airflex
Specifications Maximum Speed
1800 rpm
Specifications Minimum Drum Diameter
13.90 in | 353 mm
Specifications New Friction Lining Thickness
0.20 in | 5 mm
Specifications Number Of Friction Shoes
14
Specifications Number Of Mounting Holes
16
Specifications Size
14CB400
Specifications Torque Rating 75 Psi55 Bar
19700 lb·in | 2230 Nm
Specifications Weight
31.0 lb | 14 kg
Specifications Worn Friction Lining Thickness
0.06 in | 2 mm
