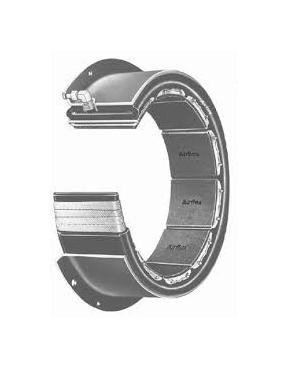

The 14CB400 Single Flange CB Element with 1 side connectionForm CB-402 is a high-performance component designed for demanding clutch and brake applications. With a torque rating of 19700 lb·in, maximum speed of 1800 rpm, and precise dimensions meeting institutional procurement requirements, this element ensures reliable performance in industrial settings. Its durable construction, friction area of 170 in², and compliance with industry-specific standards make it a top choice for both consumer and institutional buyers.

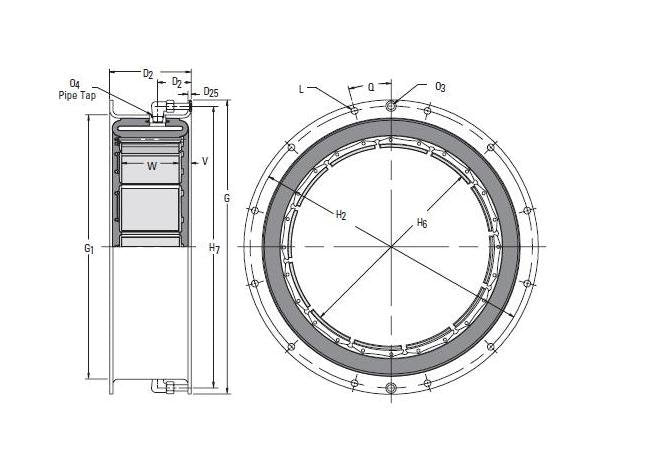

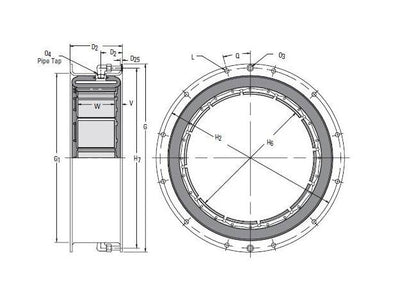

Product Specifications
Note 0
Refers to basic part number only. When ordering, the number of air inlets and type of connection must be specified.
Specifications Air Inlet Thread
3/8-18
Specifications Air Tube Cavity
70 in³ | 1.15 dm³
Specifications Angle Q
11.250 º
Specifications Bolt Hole Size L
0.375 in | 10 mm
Specifications Centrifugal Loss Constant Cs
1.04 E-06 bar/rpm2 | 15 E-06 psi/rpm2
Specifications Dimension D2
5.38 in | 137 mm
Specifications Dimension D24
2.00 in | 51 mm
Specifications Dimension D25
0.19 in | 5 mm
Specifications Dimension G
19.625 in | 498.5 mm
Specifications Dimension G1
17.88 in | 454 mm
Specifications Dimension H2
18.875 in | 479.4 mm
Specifications Dimension H6
14.13 in | 359 mm
Specifications Dimension H7
18.88 in | 479 mm
Specifications Dimension O3
0.31 in | 8 mm
Specifications Dimension V
0.69 in | 17 mm
Specifications Friction Area
170 in² | 1097 cm²
Specifications Friction Shoe Width W
4.00 in | 102 mm
Specifications Inertia
21 lb·ft² | 0.88 kg·m²
Specifications Manufacturer
Airflex
Specifications Maximum Speed
1800 rpm
Specifications Minimum Drum Diameter
13.90 in | 353 mm
Specifications New Friction Lining Thickness
0.20 in | 5 mm
Specifications Number Of Friction Shoes
14
Specifications Number Of Mounting Holes
16
Specifications Size
14CB400
Specifications Torque Rating 75 Psi55 Bar
19700 lb·in | 2230 Nm
Specifications Weight
35 lb | 16 kg
Specifications Worn Friction Lining Thickness
0.06 in | 2 mm
