14M Series Circuit Board Support
14M Series Circuit Board Support
SKU:01C-236be8
High-quality circuit board support with M-4 thread, Nylon 66 material, UL94V-2 rating, RoHS compliant, and precise dimensions.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
14M Series Circuit Board Support
$49.99
Quantity: 1
Claim Your Seller Account
14M Series Circuit Board Support
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

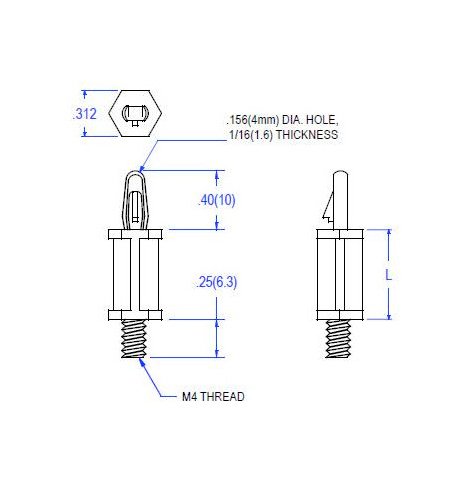

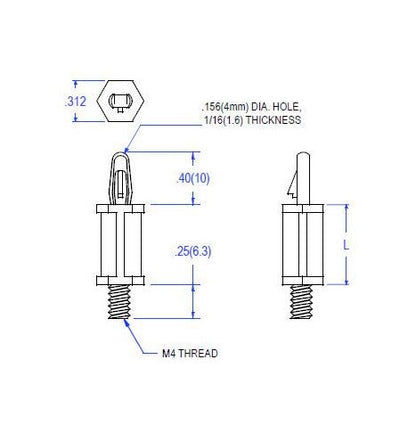

The 14M Series circuit board support is designed to provide reliable threaded support for circuit boards with .156-inch holes and M-4 threads. Each pack contains 1000 supports made of durable Nylon 66 material, with UL94V-2 fire rating (UL94V-0 available upon request). Tested to meet UL File No: E41938 and ASTM standards D 4066 and PA111, these supports are RoHS compliant and can withstand temperatures ranging from -40 to 185F (-40 to 85C). The precision specifications ensure a perfect fit, with a length of 1.00 inch (25.4mm) +/- .015.
Product Specifications
Specifications L 015
1.00 (25.4) inches (mm)
