14M Series Circuit Board Support with M-4 Thread, Nylon 66 Material
14M Series Circuit Board Support with M-4 Thread, Nylon 66 Material
SKU:01C-f84799
Securely mount circuit boards with our durable 14M Series supports - UL94V-2 rated Nylon 66 material for reliable performance.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
14M Series Circuit Board Support with M-4 Thread, Nylon 66 Material
$39.99
Quantity: 1
Claim Your Seller Account
14M Series Circuit Board Support with M-4 Thread, Nylon 66 Material
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

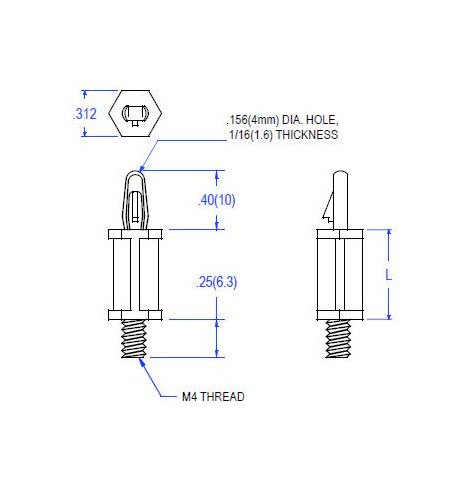

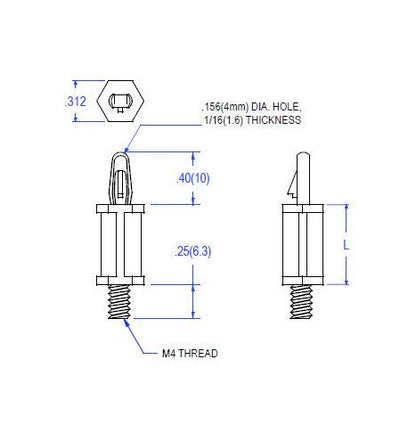

The 14M Series Circuit Board Support is designed for reliable mounting of circuit boards with a .156-inch hole and M-4 thread. Each pack contains 1000 supports made from durable Nylon 66 material, offering high heat resistance with a RoHS compliant design. These supports meet UL94V-2 standards, with an UL94V-0 option available upon request. Tested for quality and safety, this product ensures secure board installation within a temperature range of -40 to 185F (-40 to 85C), meeting ASTM D 4066 and PA111 regulations.
Product Specifications
Specifications L 015
1.125 (28.6) inches (mm)
