14M Series Nylon Circuit Board Support
14M Series Nylon Circuit Board Support
SKU:01C-cc3cfb
Secure your circuit boards with the durable 14M Series Nylon supports, UL-certified and RoHS Compliant. Temperature range: -40 to 185F.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
14M Series Nylon Circuit Board Support
$29.99
Quantity: 1
Claim Your Seller Account
14M Series Nylon Circuit Board Support
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

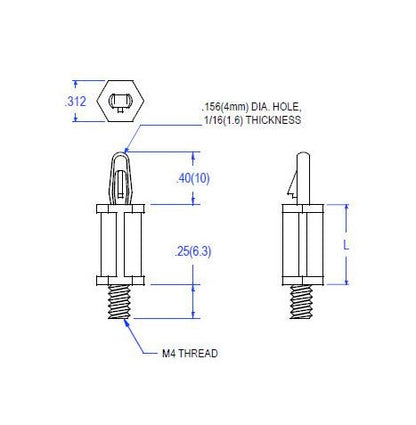

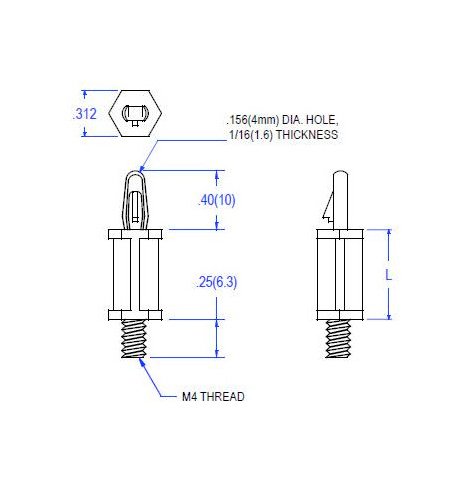

The 14M Series Nylon Circuit Board Support is designed with a .156 Board Hole and M-4 Thread to securely fasten circuit boards. This threaded support, made of Nylon 66 UL94V-2 material (UL94V-0 available), ensures durability and reliability. With UL File No. E41938 and ASTM D 4066, PA111 compliance, this support is RoHS Compliant and operates in a temperature range of -40 to 185F (-40 to 85C). The L+/- .015 measures .250 inches (6.4mm), providing precise board support for various applications.
Product Specifications
Specifications L 015
.250 (6.4) inches (mm)
