14mm UM10 Grade Carbide Rod
14mm UM10 Grade Carbide Rod
SKU:SOL-a93c49
High-precision 14mm UM10 Grade Carbide Rod for accurate machining applications. Polished finish with 2 holes & BC diameter of 6.7mm. ISO h6 compliant.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
14mm UM10 Grade Carbide Rod
$49.99
Quantity: 1
Claim Your Seller Account
14mm UM10 Grade Carbide Rod
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

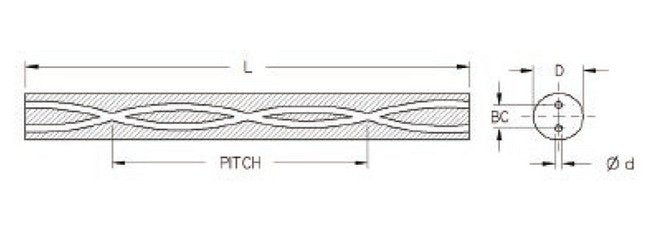

The 14mm UM10 Grade Two Hole 30 Degree Precision Ground Reduced Carbide Rod is a high-quality component designed for precision machining applications. Featuring a polished finish and a diameter of 14mm with a length of 330mm (+5mm | 0mm tolerance), this rod offers exceptional accuracy. The 1.75mm holes with a tolerance of ±0.20mm, and a Between Centers (BC) diameter of 6.7mm with a tolerance of 0/-0.40mm ensure consistent performance. Compliant with ISO tolerance type h6 and weighing 0.878kg, this carbide rod is ideal for industries requiring exacting standards.
Product Specifications
Classifications Between Centers Bc Diameter
6.7 mm
Classifications Between Centers Bc Diameter Tolerance
0/-0.40 mm
Classifications Brands
Ultra-Met®
Classifications Carbide Grade
UM10
Classifications Diameter
14 mm
Classifications Finish
Polished
Classifications Hole D
1.75 mm
Classifications Hole D Tolerance
0.20 mm
Classifications International Organization For Standardization I
h6
Classifications Length
330 mm
Classifications Length Tolerance
+5 mm | 0 mm
Classifications Material
Carbide
Classifications Note
All inventory subject to prior sales.
Classifications Pitch
76.18 mm
Classifications Shipping Weight
0.878357475 Kilogram
