14mm UM10 Grade Carbide Rod with Two Holes
14mm UM10 Grade Carbide Rod with Two Holes
SKU:SOL-2b2925
High-precision 14mm UM10 Grade Carbide Rod with Two Holes for industrial applications.
Regular price
$69.99
Regular price
Sale price
$69.99
Unit price
per
Initiate Order
14mm UM10 Grade Carbide Rod with Two Holes
$69.99
Quantity: 1
Claim Your Seller Account
14mm UM10 Grade Carbide Rod with Two Holes
$69.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

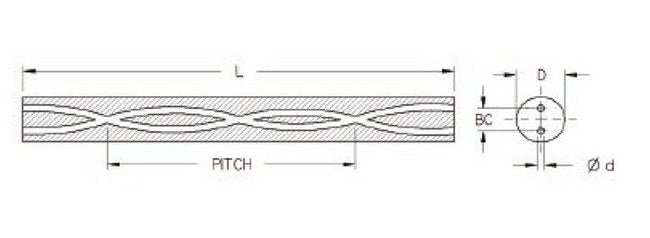

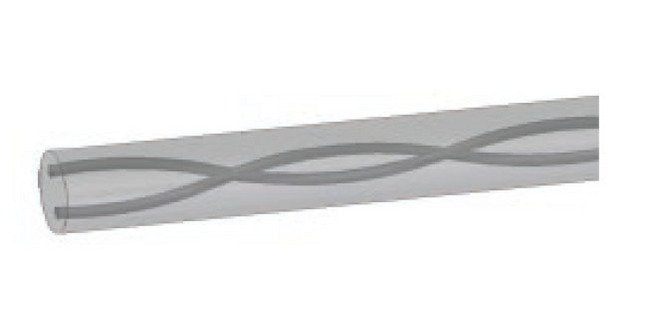

The 14mm Diameter UM10 Grade Two Hole Carbide Rod is crafted for precision and durability. With a polished finish, this rod is 330mm in length with a tolerance of +5mm | 0mm. The 40-degree angle enhances performance, while the 1.00mm hole diameter ensures versatility. Compliant with ISO tolerance type h6, this robust carbide rod is ideal for industrial applications requiring high precision and reliability. The Ultra-Met® brand guarantees exceptional quality and performance.
Product Specifications
Classifications Between Centers Bc Diameter
4.3 mm
Classifications Between Centers Bc Diameter Tolerance
±0.40 mm
Classifications Brands
Ultra-Met®
Classifications Carbide Grade
UM10
Classifications Diameter
14 mm
Classifications Finish
Polished
Classifications Hole D
1.00 mm
Classifications Hole D Tolerance
0.20 mm
Classifications International Organization For Standardization I
h6
Classifications Length
330 mm
Classifications Length Tolerance
+5 mm | 0 mm
Classifications Material
Carbide
Classifications Note
All inventory subject to prior sales.
Classifications Pitch
52.42 mm
Classifications Shipping Weight
0.878357475 Kilogram
