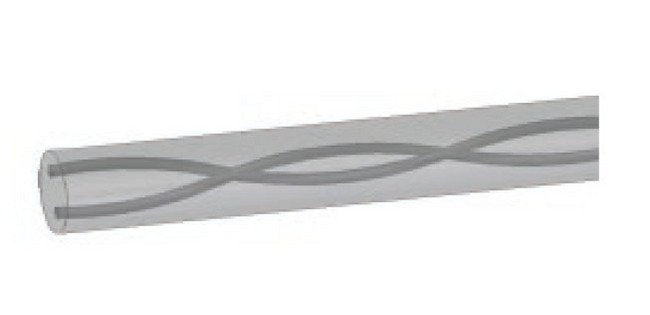

14mm UM12 Grade Two Hole 40° Precision Ground Carbide Rod
14mm UM12 Grade Two Hole 40° Precision Ground Carbide Rod
SKU:SOL-1a449e
High-quality 14mm carbide rod for precise machining. Polished finish, 330mm length. Ideal for industrial and government use.
Regular price
$69.99
Regular price
Sale price
$69.99
Unit price
per
Initiate Order
14mm UM12 Grade Two Hole 40° Precision Ground Carbide Rod
$69.99
Quantity: 1
Claim Your Seller Account
14mm UM12 Grade Two Hole 40° Precision Ground Carbide Rod
$69.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 14mm UM12 Grade Two Hole 40° Precision Ground Carbide Rod is a top-tier solution for precision machining needs. Crafted from high-quality carbide material, with a polished finish, this rod ensures durability and accuracy in every application. With a 330mm length (+5mm | 0mm tolerance), and a precise 1.00mm hole diameter, it meets the stringent h6 ISO tolerance type. The precise 40° pitch and 4.3mm Between Centers (BC) diameter deliver consistent performance, making it ideal for industrial and government applications.

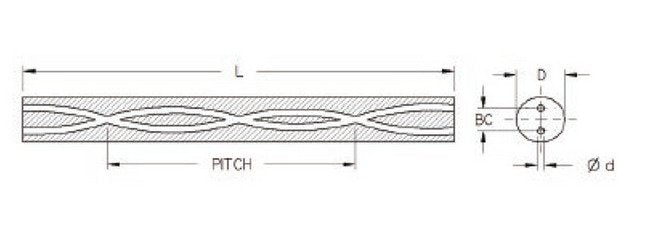

Product Specifications
Classifications Between Centers Bc Diameter
4.3 mm
Classifications Between Centers Bc Diameter Tolerance
±0.40 mm
Classifications Brands
Ultra-Met®
Classifications Carbide Grade
UM12
Classifications Diameter
14 mm
Classifications Finish
Polished
Classifications Hole D
1.00 mm
Classifications Hole D Tolerance
0.20 mm
Classifications International Organization For Standardization I
h6
Classifications Length
330 mm
Classifications Length Tolerance
+5 mm | 0 mm
Classifications Material
Carbide
Classifications Note
All inventory subject to prior sales.
Classifications Pitch
52.42 mm
Classifications Shipping Weight
0.878357475 Kilogram
