14mm UM6 Grade Precision Ground Carbide Rod
14mm UM6 Grade Precision Ground Carbide Rod
SKU:SOL-8913ce
High-precision 14mm UM6 Grade Carbide Rod for industrial applications. Two-hole design, polished finish, ISO h6 tolerance.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
14mm UM6 Grade Precision Ground Carbide Rod
$49.99
Quantity: 1
Claim Your Seller Account
14mm UM6 Grade Precision Ground Carbide Rod
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

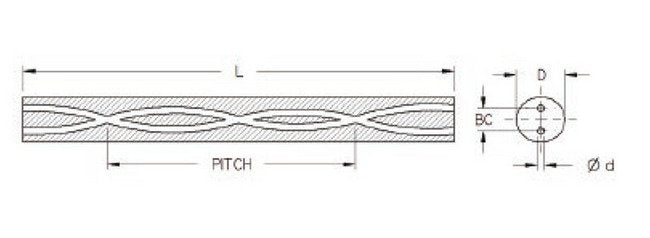

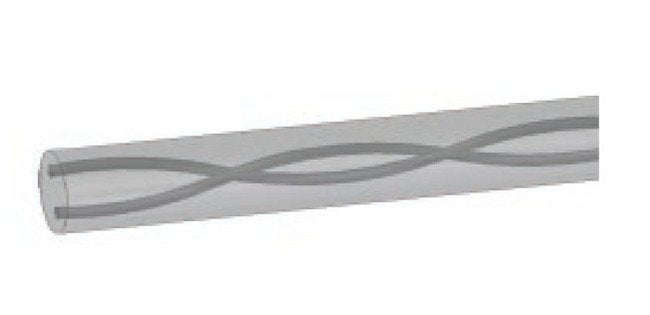

The 14mm UM6 Grade Precision Ground Carbide Rod is a top-quality solid carbide rod designed for precision machining applications. Its two-hole design with a 40-degree angle ensures enhanced stability and performance. This rod is polished to perfection with a diameter tolerance of ±0.20mm, meeting ISO tolerance Type h6. The UM6 carbide grade guarantees long-lasting durability and reliability, making it ideal for demanding industrial tasks. With a length of 330mm (+5mm | 0mm) and a between centers diameter of 4.3mm (±0.40mm), this carbide rod offers exceptional accuracy and consistency, meeting the strictest standards of quality.
Product Specifications
Classifications Between Centers Bc Diameter
4.3 mm
Classifications Between Centers Bc Diameter Tolerance
±0.40 mm
Classifications Brands
Ultra-Met®
Classifications Carbide Grade
UM6
Classifications Diameter
14 mm
Classifications Finish
Polished
Classifications Hole D
1.00 mm
Classifications Hole D Tolerance
0.20 mm
Classifications International Organization For Standardization I
h6
Classifications Length
330 mm
Classifications Length Tolerance
+5 mm | 0 mm
Classifications Material
Carbide
Classifications Note
All inventory subject to prior sales.
Classifications Pitch
52.42 mm
Classifications Shipping Weight
0.878357475 Kilogram
