15.0mm Open End Reduced Countersunk Head Rivet Nut
15.0mm Open End Reduced Countersunk Head Rivet Nut
SKU:FSE-05a732
High-quality 15.0mm steel rivet nut with reduced countersunk head for secure and flush fastening. Available in stainless steel & aluminum.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
15.0mm Open End Reduced Countersunk Head Rivet Nut
$24.99
Quantity: 1
Claim Your Seller Account
15.0mm Open End Reduced Countersunk Head Rivet Nut
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

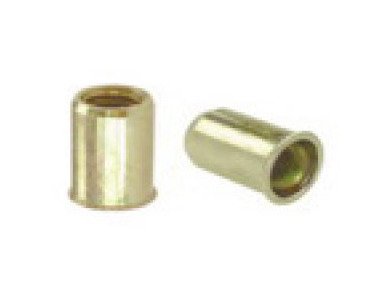

The F-Series 15.0mm Open End Reduced Countersunk Head Rivet Nut from Ornit is a high-quality fastening solution designed for industrial applications. Constructed from steel with a yellow zinc plated finish, this rivet nut offers excellent durability and corrosion resistance. With a minimum grip range of 0.8mm and a maximum grip range of 2.5mm, it provides a secure and reliable fastening option. The small reduced countersunk head design ensures a flush finish for a seamless look. This rivet nut is available in stainless steel and aluminum options, catering to diverse project requirements, and serration style variations are also offered for enhanced gripping strength.
Product Specifications

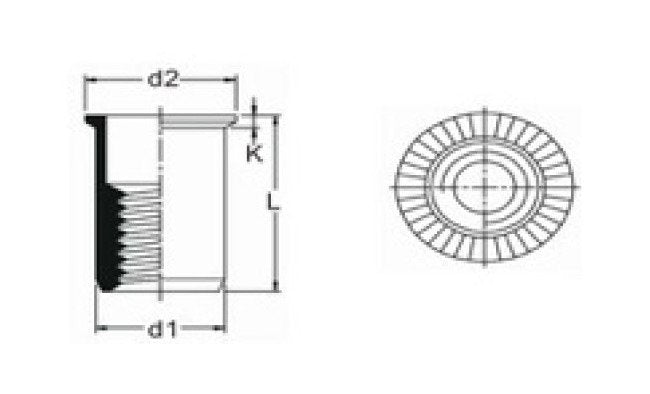

Dimensions Dimension D1
9.45 mm
Dimensions Dimension D2
10.7 mm
Dimensions Dimension K
1.0 mm
Dimensions Dimension L
15.0 mm
Dimensions Hole Size
9.6 mm
Dimensions Maximum Grip Range
2.5 mm
Dimensions Minimum Grip Range
0.8 mm
Note Note
Stainless Steel & Aluminum are available. Serration style is available.
Technical Specs Brands
Ornit
Technical Specs Finish
Yellow Zinc Plated
Technical Specs Head Style
Reduced Countersunk Head (Small)
Technical Specs Material
Steel
Technical Specs Rivet Type
Open End
Technical Specs Thread Size
M6
