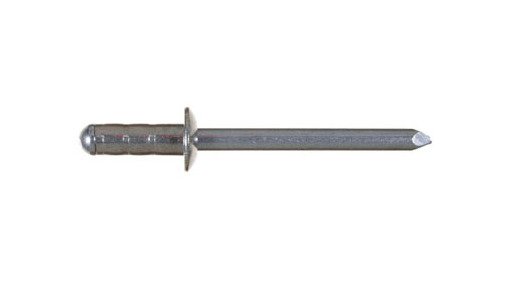

15.1mm U-Fix Stainless Steel Dome Head Rivet
15.1mm U-Fix Stainless Steel Dome Head Rivet
SKU:UFI-6a6234
Versatile 15.1mm Stainless Steel Dome Rivet for automotive and trailer applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
15.1mm U-Fix Stainless Steel Dome Head Rivet
$29.99
Quantity: 1
Claim Your Seller Account
15.1mm U-Fix Stainless Steel Dome Head Rivet
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 15.1mm U-Fix All Stainless Steel Dome Head Rivet is a versatile and reliable fastener designed for a range of applications in automotive and trailer industries. With a body length of 15.1mm and exceptional multi-grip functionality, this rivet offers a secure hold with a shear force of 660 kgf and a tensile force of 510 kgf. Made from Stainless Steel AISI 304, it ensures durability and corrosion resistance. Ideal for securing rails, components in vehicles, and more, this rivet guarantees structural integrity and efficiency.
Product Specifications
Applications Automotive Application
InteriorThe U-Fix is a highly versatile purpose-built fastener, featuring an excellent multi-grip function ideal for a variety of purposes. Commonly used to secure components within the vehicle.
Nominal Dimensions Body Length
15.1 mm | 0.594 in
Nominal Dimensions Diameter
4.8 mm | 3/16 in
Nominal Dimensions Drillhole Size
5.0 mm | 0.197 in
Nominal Dimensions Head Diameter
9.8 mm | 0.386 in
Nominal Dimensions Head Thickness
1.85 mm | 0.073 in
Nominal Dimensions Mandrel Diameter
3.38 mm | 0.133 in
Nominal Dimensions Maximum Grip Range
10.0 mm | 0.394 in
Nominal Dimensions Minimum Grip Range
5.0 mm | 0.197 in
Nominal Forces Nominal Shear Force
660 kgf | 1452 lbf
Nominal Forces Nominal Tensile Force
510 kgf | 1122 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Stainless Steel AISI 304
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
4000
Technical Specs Head Style
Dome
Technical Specs Mandrel Finish
Natural
Technical Specs Mandrel Material
Stainless Steel AISI 430/434 or Equivalent
