15.5mm P-Series Open End Cylindrical Head Rivet Nut

Name: 15.5mm P-Series Open End Cylindrical Head Rivet Nut
Brand: Ornit USA
SKU: PSE-db2759
Price: 12.99 USD
Availability: OutOfStock

SKU:PSE-db2759

Durable 15.5mm P-Series Rivet Nut for secure fastening. Versatile with serration and material options.

$12.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

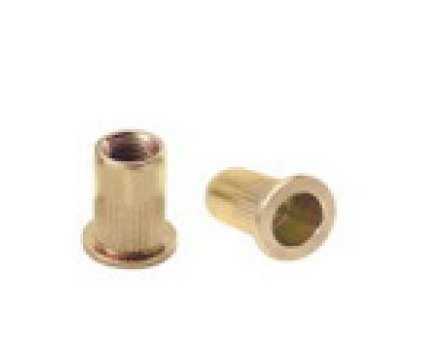

Enhance your assembly projects with the 15.5mm P-Series Open End Cylindrical Head Rivet Nut. Made from durable yellow zinc-plated steel by Ornit, this M6 threaded nut offers a grip range of 0.5mm to 2.5mm, ensuring secure fastening. With serration style available and options for stainless steel and aluminum, this versatile rivet nut meets stringent industry standards for reliability and durability.

Product Specifications

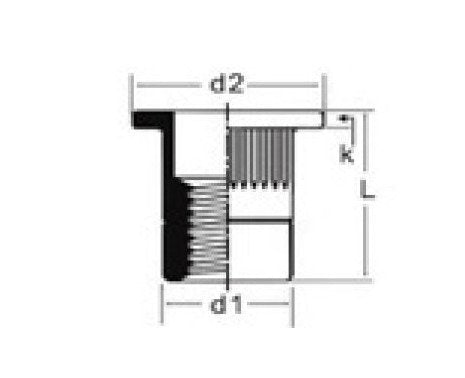

Dimensions Dimension D1

9.0 mm

Dimensions Dimension D2

12.3 mm

Dimensions Dimension K

1.5 mm

Dimensions Dimension L

15.5 mm

Dimensions Hole Size

9.1 mm

Dimensions Maximum Grip Range

2.5 mm

Dimensions Minimum Grip Range

0.5 mm

Note Note

Stainless Steel & Aluminum are available. Serration style is available.

Technical Specs Brands

Ornit

Technical Specs Finish

Yellow Zinc Plated

Technical Specs Head Style

Cylindrical Head (Flat)

Technical Specs Material

Steel

Technical Specs Rivet Type

Open End

Technical Specs Thread Size

15.5mm P-Series Open End Cylindrical Head Rivet Nut
