15.5mm P-Series Open End Cylindrical Rivet Nut with M6 Thread

Name: 15.5mm P-Series Open End Cylindrical Rivet Nut with M6 Thread
Brand: Ornit USA
SKU: PSE-a806e7
Price: 12.99 USD
Availability: OutOfStock

SKU:PSE-a806e7

High-quality 15.5mm P-Series cylindrical rivet nut with M6 thread, ideal for secure and durable fastening applications.

$12.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

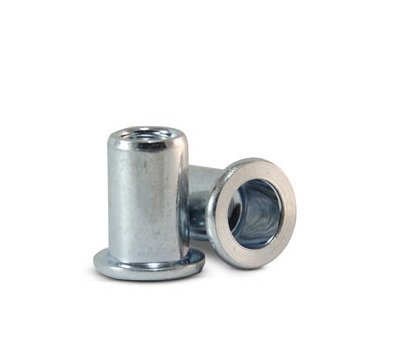

The 15.5mm P-Series Open End Cylindrical Rivet Nut with M6 Thread is a top-quality fastening solution designed for durability and ease of use. Made from high-grade steel with a yellow zinc plated finish, this rivet nut is ideal for a wide range of applications. With precise dimensions and a grip range from 0.5mm to 2.5mm, it ensures a secure and lasting hold. Stainless steel and aluminum options are also available, along with serration style choices for enhanced flexibility.

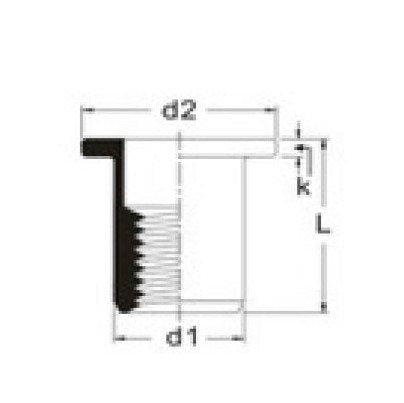

Product Specifications

Dimensions Dimension D1

9.0 mm

Dimensions Dimension D2

12.3 mm

Dimensions Dimension K

1.5 mm

Dimensions Dimension L

15.5 mm

Dimensions Hole Size

9.1 mm

Dimensions Maximum Grip Range

2.5 mm

Dimensions Minimum Grip Range

0.5 mm

Note Note

Stainless Steel & Aluminum are available. Serration style is available.

Technical Specs Brands

Ornit

Technical Specs Finish

Yellow Zinc Plated

Technical Specs Head Style

Cylindrical Head (Flat)

Technical Specs Material

Steel

Technical Specs Rivet Type

Open End

Technical Specs Thread Size

15.5mm P-Series Open End Cylindrical Rivet Nut with M6 Thread
