15.5mm Semi-Hexagon Rivet Nut

Name: 15.5mm Semi-Hexagon Rivet Nut
Brand: Ornit USA
SKU: ASE-75046c
Price: 12.99 USD
Availability: OutOfStock

SKU:ASE-75046c

High-quality 15.5mm Semi-Hexagon Reduced Countersunk Rivet Nut for secure and space-efficient fastening.

$12.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

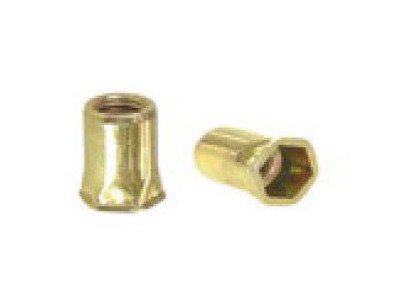

The A-Series 15.5mm Dimension L Semi-Hexagon Reduced Countersunk Head Rivet Nut by Ornit is a high-quality fastening solution crafted from steel with a yellow zinc plating, ensuring durability and corrosion resistance. With a minimum grip range of 1.0mm and a maximum grip range of 2.5mm, this rivet nut offers a secure hold for various applications. Its small reduced countersunk head design and precise dimensions make it ideal for projects where space is limited. Additionally, stainless steel and aluminum options are available, catering to diverse needs.

Product Specifications

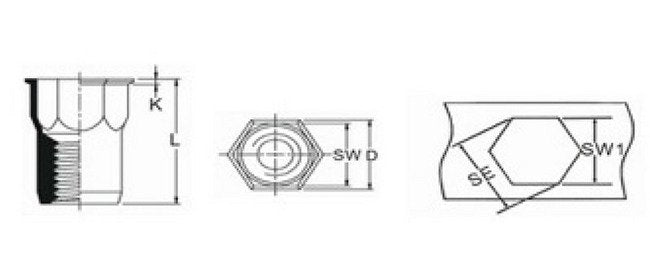

Dimensions Dimension D2

12.0 mm

Dimensions Dimension K

0.8 mm

Dimensions Dimension L

15.5 mm

Dimensions Dimension Se

12.4 mm

Dimensions Dimension Sw1

11.1 mm

Dimensions Maximum Grip Range

2.5 mm

Dimensions Minimum Grip Range

1.0 mm

Note Note

Stainless Steel & Aluminum are available. Serration style is available.

Technical Specs Brands

Ornit

Technical Specs Finish

Yellow Zinc Plated

Technical Specs Head Style

Reduced Countersunk Head (Small)

Technical Specs Material

Steel

Technical Specs Rivet Type

Semi-Hexagone

Technical Specs Thread Size

M8 | SW 11.0
