15" Aluminum Test Plug with By-Pass - 143-7 Mechanical T-Handle

15" Aluminum Test Plug with By-Pass - 143-7 Mechanical T-Handle

HIG-cb17f0

Reliable 15" Aluminum Test Plug for sewer air pressure tests with chemical-resistant neoprene seal. Ideal for heavy-duty applications.

$89.99
$89.99
Sale

Initiate Order

15" Aluminum Test Plug with By-Pass - 143-7 Mechanical T-Handle

15" Aluminum Test Plug with By-Pass - 143-7 Mechanical T-Handle

$89.99

Quantity: 1

Claim Your Seller Account

15" Aluminum Test Plug with By-Pass - 143-7 Mechanical T-Handle

15" Aluminum Test Plug with By-Pass - 143-7 Mechanical T-Handle

$89.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
Designed for rigorous applications, the 15" Aluminum Test Plug with By-Pass from the 143-7 Mechanical T-Handle series features a heavy-duty aluminum body and T-handle with a chemical-resistant neoprene seal. Ideal for long-term sewer air pressure tests, it ensures reliability and durability. With a nominal diameter of 15 inches and maximum allowable pressures of 5 psi for air and 30 ft for liquid head pressure, this plug meets demanding industrial standards. Available with a 3/4" MNPT by-pass, it offers versatility for various applications, including concrete and clay pipe sizes.

Product Specifications

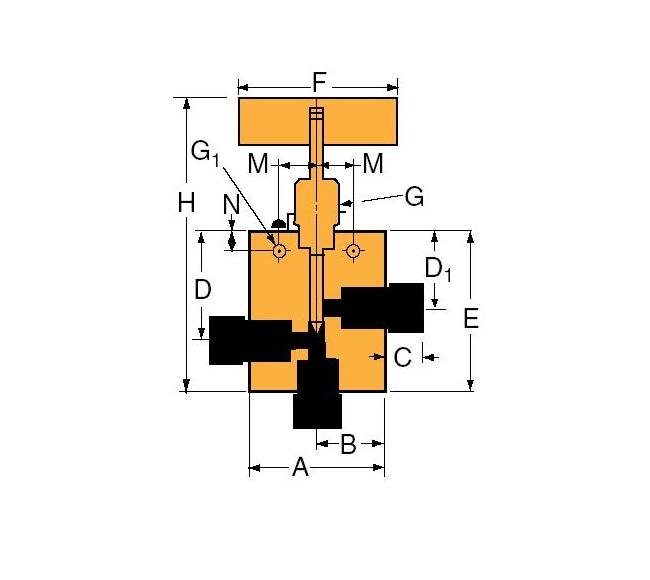

Specifications A Width
2.00 in | 50.80 mm
Specifications Block Thickness
1.00 in | 25.40 mm
Specifications B Length
1.00 in | 25.40 mm
Specifications Connection Type
F250C
Specifications C Length
0.50 in | 12.70 mm
Specifications D1 Height
1.12 in | 28.45 mm
Specifications D Height
1.5 in | 38.1 mm
Specifications E Height
2.12 in | 53.85 mm
Specifications F Length
3.00 in | 76.20 mm
Specifications G1 Bracket Mounting Hole Size
0.22 in | 5.59 mm
Specifications G Packing Gland Mounting Hole Drill Size
1.00 in | 25.40 mm
Specifications H Height
4.74 in | 120.4 mm
Specifications M Length
0.69 in | 17.53 mm
Specifications N Height
0.38 in | 9.65 mm
Specifications Orifice Diameter
0.094 in | 2.39 mm
Specifications Outside Diameter Tube
1/4 in | 6.35 mm
Specifications Pressure Rating At Room Temperature
30000 psi | 2068 bar
Specifications Rated Cv
0.12
Specifications Stem Type
REG
Specifications Tubing Engagement Depth
0.50 in | 12.7 mm
Specifications Valve Pattern
3-Way / 2 on Pressure
Valve Maintenance 0
Repair Kits:add "R" to the front of valve catalog number for proper repair kit. (Example: R30VM4071)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found on the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.
Valve Options 0
Extreme TemperaturesStandard Autoclave valves with Teflon packing may be operated from 0°F (-17.8°C) to 450°F (232°C). High temperature packing is available for service from -423°F (-252°C) to 1200°F (649°C) by adding the following suffixes to catalog order number.TG - standard valve with Teflon glass packing to 600°F (316°C).GY - standard valve with graphite braided yarn packing to 800°F (427°C).HT - extended stuffing box valve with graphite braided yarn packing to 1200°F (649°C).B - standard valve with cryogenic trim material and Teflon packing to -100°F (-73°C).LT - extended stuffing box valve with Teflon packing & Cryogenic trim materials to -423°F (-252°C).
