15 Horsepower (hp) Motor Power Triplex Rotary Claw Vacuum System

Name: 15 Horsepower (hp) Motor Power Triplex Rotary Claw Vacuum System
Brand: Ohio Medical Parts
SKU: ROT-002e25
Price: 49.99 USD
Availability: OutOfStock

SKU:ROT-002e25

N/A

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

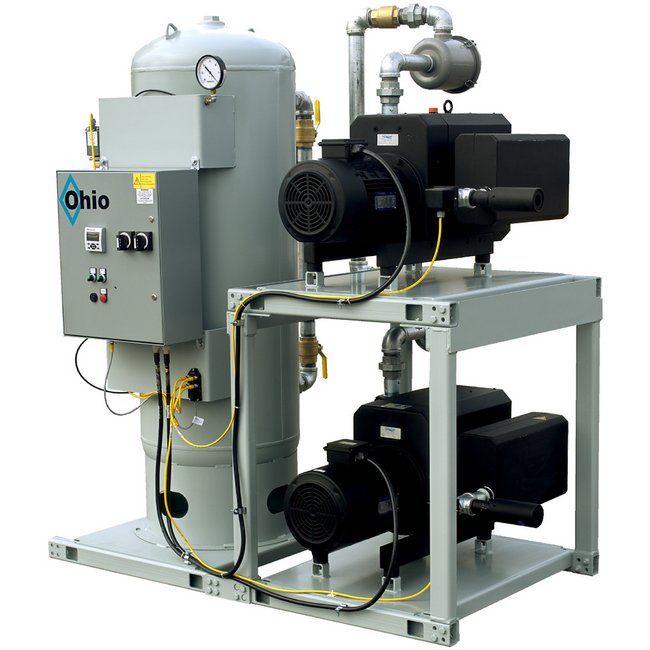

The Ohio® Medical Oil-Less Rotary Claw Medical Vacuum System is fully NFPA® 99 compliant for use in medical vacuum and WAGD applications. The unit consists of electric motor driven pumps, vacuum receiver, electrical control system, and interconnection piping and wiring. The components are modularly assembled to accommodate most existing doorways and designed for serviceability. The packaged unit is factory tested prior to shipment and warranted for a period of 30 months from date of shipment or 24 months from date of start-up.

Product Specifications

Note

Full Load Amperage, Three Phase MotorsAll FLA listed are approximate

Specifications Motor Power

15 hp

Specifications Pump Type

Rotary Claw

Specifications System Full Load Current At 208 Volt V Voltage

141 A

Specifications System Full Load Current At 230 Volt V Voltage

128.2 A

Specifications System Full Load Current At 380 Volt V Voltage

76.2 A

Specifications System Full Load Current At 460 Volt V Voltage

64.2 A

Specifications Type

Triplex

15 Horsepower (hp) Motor Power Triplex Rotary Claw Vacuum System
