15 Inch T-Handle Aluminum Test Plug
15 Inch T-Handle Aluminum Test Plug
SKU:HIG-3cef77
Durable and versatile 15-inch T-Handle Test Plug for sewer air pressure tests, from the Petersen® 143-7 series.
Regular price
$239.99
Regular price
Sale price
$239.99
Unit price
per
Initiate Order
15 Inch T-Handle Aluminum Test Plug
$239.99
Quantity: 1
Claim Your Seller Account
15 Inch T-Handle Aluminum Test Plug
$239.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 15 Inch T-Handle Aluminum Test Plug from the 143-7 Mechanical Plug Series by Petersen® is engineered for durability and reliability. With a heavy-duty aluminum body, chemical-resistant neoprene seal, and a maximum allowable back pressure of 5 psi for air and 30 ft for liquid head pressure, this plug is ideal for long-term applications and sewer air pressure tests. The plug is built to withstand various pipe diameters, including a nominal diameter of 15 inches, making it versatile and robust for institutional and government procurement needs.

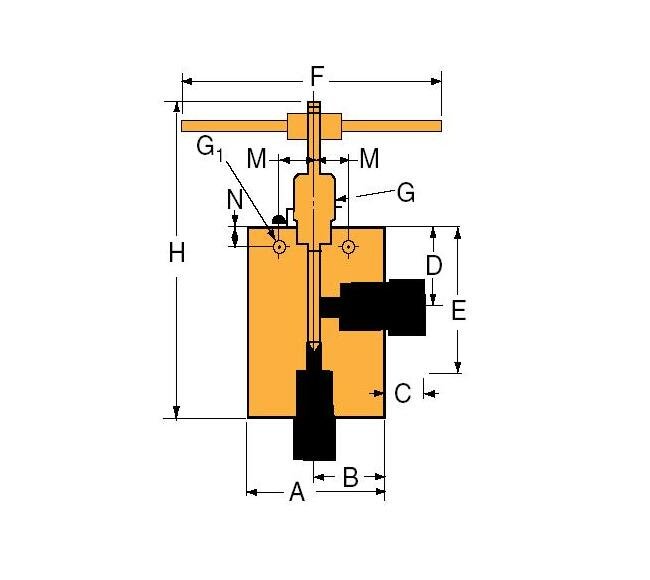

Product Specifications
Specifications A Width
4.88 in | 123.96 mm
Specifications Block Thickness
2.25 in | 57.15 mm
Specifications B Length
2.44 in | 61.96 mm
Specifications Connection Type
F1000C43
Specifications C Length
0.72 in | 18.28 mm
Specifications D Height
3.50 in | 88.90 mm
Specifications E Height
5.12 in | 130.04 mm
Specifications F Length
10.25 in | 260.35 mm
Specifications G1 Bracket Mounting Hole Size
0.56 in | 14.22 mm
Specifications G Packing Gland Mounting Hole Drill Size
1.62 in | 41.14 mm
Specifications H Height
9.30 in | 236.22 mm
Specifications M Length
1.25 in | 31.75 mm
Specifications N Height
1.12 in | 28.44 mm
Specifications Orifice Diameter
0.438 in | 11.12 mm
Specifications Outside Diameter Tube
1 in | 25.4 mm
Specifications Pressure Rating At Room Temperature
43000 psi | 2965 bar
Specifications Rated Cv
2.6
Specifications Stem Type
VEE
Specifications Tubing Engagement Depth
1.62 in | 41.1 mm
Specifications Valve Pattern
2-Way Angle
Valve Maintenance 0
Repair Kits:add "R" to the front of valve catalog number for proper repair kit. (Example: R30SC16071)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found on the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.
Valve Options 0
Extreme TemperaturesStandard Autoclave valves with Teflon packing may be operated from 0°F (-17.8°C) to 450°F (232°C). High temperature packing is available for service from -423°F (-252°C) to 1200°F (649°C) by adding the following suffixes to catalog order number.TG - standard valve with Teflon glass packing to 600°F (316°C).GY - standard valve with graphite braided yarn packing to 800°F (427°C).8,000 psi (569 bar) max.HT - extended stuffing box valve with graphite braided yarn packing to 1200°F (649°C).B - standard valve with cryogenic trim material and Teflon packing to -100°F (-73°C).LT - extended stuffing box valve with Teflon packing & Cryogenic trim materials to -423°F (-252°C).K - anti-vibration collet and gland assembly.
