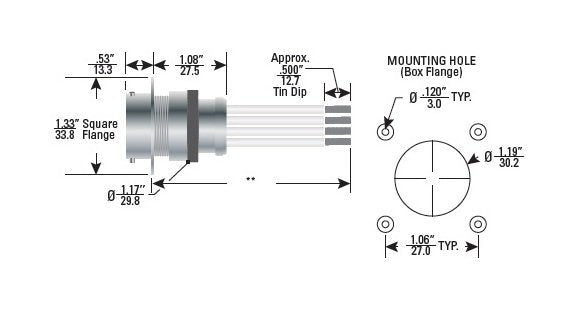

15 kVDC 4-Pin Bayonet High Voltage Connector Cable Assembly
15 kVDC 4-Pin Bayonet High Voltage Connector Cable Assembly
SKU:HIG-0eac45
15 kVDC 4-Pin Bayonet High Voltage Connector for rugged applications. With aluminum bayonet coupling nuts, BeCu contacts, and FEP insulated wires.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
15 kVDC 4-Pin Bayonet High Voltage Connector Cable Assembly
$249.99
Quantity: 1
Claim Your Seller Account
15 kVDC 4-Pin Bayonet High Voltage Connector Cable Assembly
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 15 kVDC 4-Pin Bayonet High Voltage Connector Cable Assembly from the 1804 Series is a ruggedized solution designed for demanding applications like military vehicles, radar systems, and ion propulsion. With a voltage rating of 15 kVDC, altitude rating of 70,000 ft, and operating temperature range of -55 to 125 ºC, this connector ensures reliable performance in extreme conditions. Featuring aluminum bayonet coupling nuts, BeCu contacts with gold finish, and FEP insulated wires, this assembly delivers superior conductivity, durability, and resistance to high voltages. Designed for easy installation on customer-fabricated cable assemblies, it meets the stringent requirements of institutional and government buyers.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Altitude Rating
70,000 ft
Specifications Braid Termination
Clamp
Specifications Cable Assembly Length
All cable assembly cable lengths are to be specified in inches only. For example, to order part number 178-6027 with a cable length of 10 feet 8 inches the cable assembly part number would be specified as 178-6027-128N.
Specifications Contact Finish
Gold with CRES Hood
Specifications Contact Material
BeCu
Specifications Coupling Nut Finish
Nickel
Specifications Coupling Nut Material
Aluminum
Specifications Coupling Style
Bayonet
Specifications Current Rating
7.5 A
Specifications Insulator Material
Plastic
Specifications Manufacturing Notes
Contact Teledyne Reynold's Engineering to discuss custom designs. | Product numbers and specs subject to change without notice. | Products listed represent only a small selection of Teledyne Reynold's products please visit www.teledynereynolds.com for the most up to date product information.
Specifications Number Of Contacts
4
Specifications Operating Temperature
-55 to 125 ºC
Specifications Series
1804
Specifications Test Voltage At 70000 Ft
22 kVDC
Specifications Voltage Rating
15 kVDC
Wire Specifications Conductor Awg
20
Wire Specifications Conductor Plating
TPC
Wire Specifications Conductor Strands
19/32
Wire Specifications Insulation Material
FEP
Wire Specifications Insulator Diameter
0.080 in | 2.03 mm
Wire Specifications Operating Voltage
21 kVDC
Wire Specifications Part
167-9543
