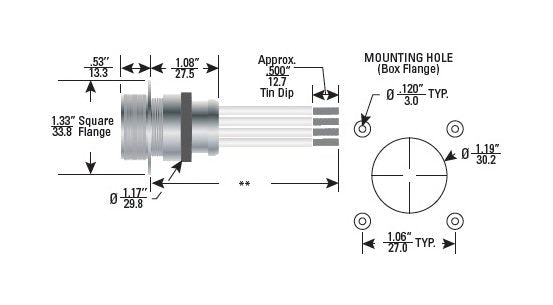

15 kVDC 7-Pin Non-Sealed Front Mount Box Flange Receptacle Cable Assembly
15 kVDC 7-Pin Non-Sealed Front Mount Box Flange Receptacle Cable Assembly
SKU:HIG-26b084
Reliable 15 kVDC 7-pin non-sealed threaded front mount box flange receptacle cable assembly for military applications.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
15 kVDC 7-Pin Non-Sealed Front Mount Box Flange Receptacle Cable Assembly
$59.99
Quantity: 1
Claim Your Seller Account
15 kVDC 7-Pin Non-Sealed Front Mount Box Flange Receptacle Cable Assembly
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 1807 Series 15 kVDC 7-pin non-sealed threaded front mount box flange receptacle cable assembly is a ruggedized connector suitable for military applications like electric reactive armor. Featuring a voltage rating of 15 kVDC, altitude rating of 70,000 ft, and operating temperature range of -55 to 125 °C, this assembly ensures reliable performance in demanding environments. With a current rating of 7.5 A, insulator material made of plastic, and bayonet coupling style, this assembly is designed for secure connections under extreme conditions. The aluminum coupling nut with nickel finish and BeCu contact material with gold finish ensure durability and efficient conductivity.
Product Specifications
Contact Properties Contact Finish
Gold with CRES Hood
Contact Properties Contact Material
BeCu
Coupling Nut Properties Coupling Nut Finish
Nickel
Coupling Nut Properties Coupling Nut Material
Aluminum
Specifications Altitude Rating
70,000 ft
Specifications Assembly
Receptacle Bag Assembly
Specifications Braid Termination
Clamp
Specifications Cable Assembly Length
All cable assembly cable lengths are to be specified in inches only. For example, to order part number 178-6027 with a cable length of 10 feet 8 inches the cable assembly part number would be specified as 178-6027-128N.
Specifications Coupling Style
Bayonet
Specifications Current Rating
7.5 A
Specifications Insulator Material
Plastic
Specifications Manufacturing Notes
Contact Teledyne Reynold's Engineering to discuss custom designs. | Product numbers and specs subject to change without notice. | Products listed represent only a small selection of Teledyne Reynold's products please visit www.teledynereynolds.com for the most up to date product information.
Specifications Number Of Contacts
7
Specifications Operating Temperature
-55 to 125 ºC
Specifications Panel Mounting Style
Front Mount
Specifications Series
1807
Specifications Test Voltage At 70000 Ft
22 kVDC
Specifications Threaded Coupling Available
Yes
Specifications Voltage Rating
15 kVDC
Specifications Wire Insulation
FEP
