15 kVDC 7-Pin Non-Shielded Threaded Plug Cable Assembly
15 kVDC 7-Pin Non-Shielded Threaded Plug Cable Assembly
SKU:HIG-057e03
High-performing 15 kVDC 7-pin threaded cable assembly for demanding applications. Silicone insulator, gold-finished brass contacts.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
15 kVDC 7-Pin Non-Shielded Threaded Plug Cable Assembly
$99.99
Quantity: 1
Claim Your Seller Account
15 kVDC 7-Pin Non-Shielded Threaded Plug Cable Assembly
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

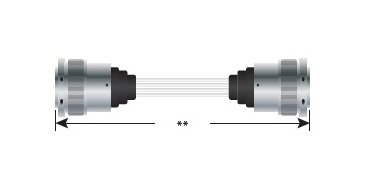

The 15 kVDC 7-Pin Non-Shielded Threaded Plug Cable Assembly from the ruggedized 1807 Series is engineered for high-performance applications, from military vehicles to NASA spacecrafts. With a voltage rating of 15 kVDC and operating temperature of -55 to 125°C, this cable assembly is designed for reliability in demanding environments. Featuring silicone insulator material, FEP wire insulation, and brass contacts with gold finish, it ensures secure connections and efficient power transmission. The aluminum coupling nut with nickel finish provides durability and stability. Ideal for high-power TWTs and RADAR power supplies, this assembly meets stringent quality and performance standards for critical operations.
Product Specifications
Application 0
15 kVDCRated at 15 kVDC at altitudes up to 70,000 feet, these 7 pin connectors are ideal for higher power TWTs and RADAR power supplies.
Contact Properties Contact Finish
Gold
Contact Properties Contact Material
Brass
Coupling Nut Properties Coupling Nut Finish
Nickel
Coupling Nut Properties Coupling Nut Material
Aluminum
Specifications Accomodates Wire Diameter
0.080 in | 2.032 mm
Specifications Altitude Rating
70,000 ft
Specifications Assembly
Double-Ended Plug Cable Assembly
Specifications Braid Termination
Clamp
Specifications Cable Assembly Length
All cable assembly cable lengths are to be specified in inches only. For example, to order part number 178-6027 with a cable length of 10 feet 8 inches the cable assembly part number would be specified as 178-6027-128N.
Specifications Coupling Style
Threaded
Specifications Current Rating
7.5 A
Specifications End 1
167-9693
Specifications End 2
167-9693
Specifications Insulator Material
Silicone
Specifications Manufacturing Notes
Contact Teledyne Reynold's Engineering to discuss custom designs. | Product numbers and specs subject to change without notice. | Products listed represent only a small selection of Teledyne Reynold's products please visit www.teledynereynolds.com for the most up to date product information.
Specifications Mating Compatibility
Mates all series 1807 threaded receptacles
Specifications Number Of Contacts
7
Specifications Operating Temperature
-55 to 125 ºC
Specifications Sealed Receptacle
No
Specifications Series
1807
Specifications Standardnon Standard
Nonstandard Part
Specifications Test Voltage At 70000 Ft
22 kVDC
Specifications Threaded Coupling Available
Yes
Specifications Voltage Rating
15 kVDC
Specifications Wire Insulation
FEP
Specifications Wire Type
Non-Shielded
Wire Specifications Conductor Awg
20
Wire Specifications Conductor Plating
TPC
Wire Specifications Conductor Strands
19/32
Wire Specifications Insulation Material
FEP
Wire Specifications Insulator Diameter
0.080 in | 2.03 mm
Wire Specifications Operating Voltage
21 kVDC
Wire Specifications Part
167-9543
