15 kVDC Ceramic Capacitors - HH57 Series

Name: 15 kVDC Ceramic Capacitors - HH57 Series
Brand: High Energy Corp.
SKU: CER-2c5597
Price: 29.99 USD
Availability: OutOfStock

SKU:CER-2c5597

Compact high-capacitance HH57 Series 15 kVDC Ceramic Capacitors with reliable performance and wide operating range.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

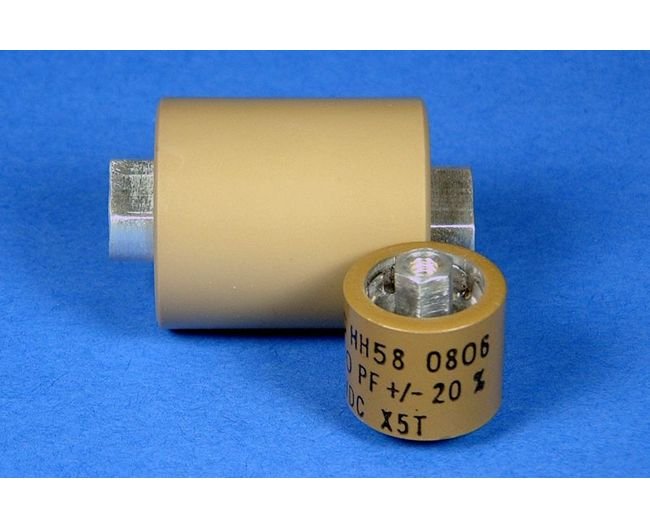

The HH57 Series Ceramic Capacitors are compact high-capacitance parts designed for 7.5 and 15 kVDC power ratings. Featuring a broadcast barrel package with metric or English terminals, these capacitors utilize three Class II dielectrics for reliable performance. With a capacitance range of 750 to 1500 pF and a wide operating temperature range of -55 to +85 ºC, these capacitors offer ±10% | ±20% capacitance tolerance and excellent dissipation factor control. Meeting stringent industry standards, these capacitors ensure durability and high performance in diverse applications.

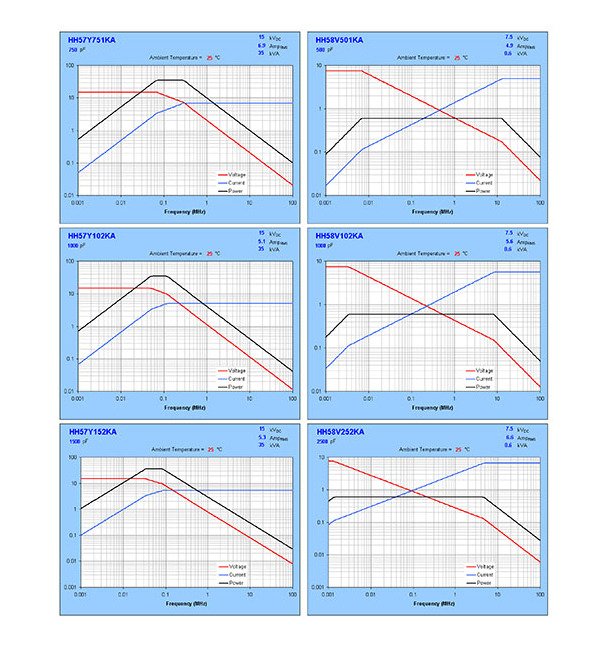

Product Specifications

Specifications Cap

750 to 1500 pF

Specifications Capacitance Tolerance

±10% | ±20%

Specifications Dielectric Characteristic

+22%, -33% capacitance change with temperature over -55ºC to +85ºC

Specifications Dielectric Strength

Will withstand an AC potential of 1.5 times Rated Working Voltage for 10 Seconds at 25ºC.

Specifications Dissipation Factor

1.5% Maximum when measured at a frequency of 1 kHz and 25 ºC

Specifications Humidity Protection

Nonconductive Coating

Specifications Minimum Insulation Resistance At 100 Vdc

10000 MΩ

Specifications Operating Temperature Range

-55 to +85 ºC

Specifications Standard Markings

"HEC", Capacitance, Tolerance, Rated Working Voltage (VDC) and Date Code

Specifications Storage Temperature Range

-55 to +125 ºC

Specifications Terminal

Silver Plated

Specifications Terminal Strength

Maximum applied torque to be 20 inch-pounds or less

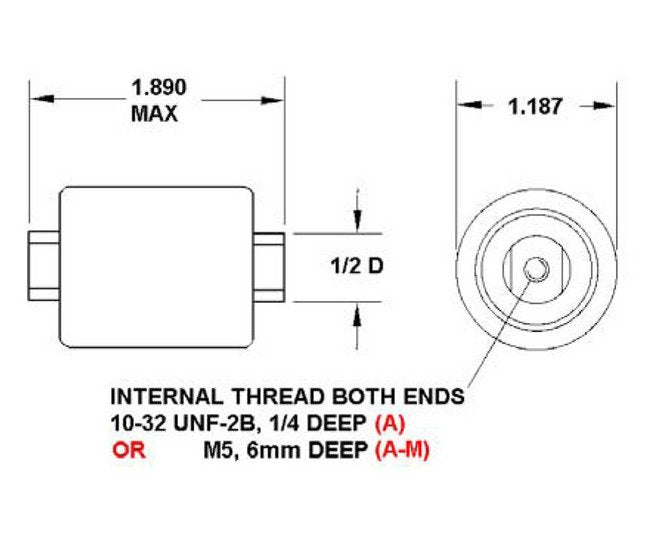

Specifications Thread

10-32 | M5

Specifications Vmax Dc

7.5 kV | 10 kV | 15 kV

15 kVDC Ceramic Capacitors - HH57 Series
