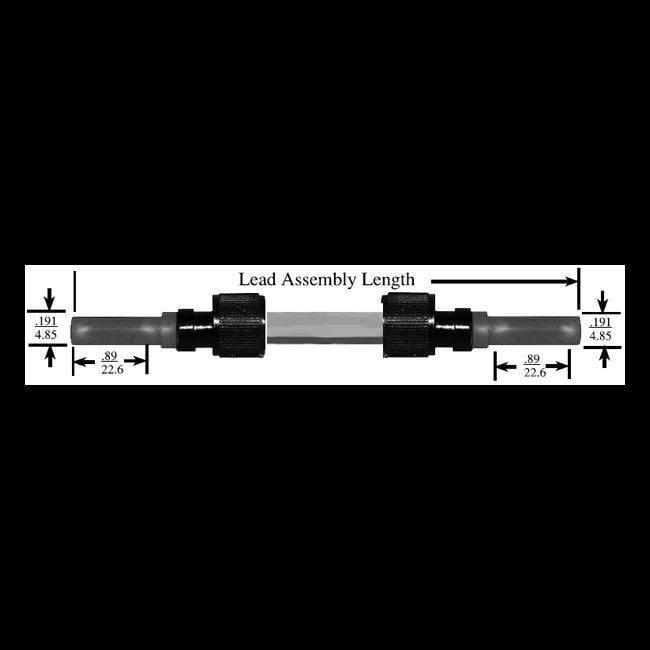

15 kVDC Double-Ended High Voltage Cable Assembly
15 kVDC Double-Ended High Voltage Cable Assembly
SKU:HIG-aae99a
Reliable 15 kVDC Double-Ended High Voltage Cable Assembly for extreme conditions.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
15 kVDC Double-Ended High Voltage Cable Assembly
$59.99
Quantity: 1
Claim Your Seller Account
15 kVDC Double-Ended High Voltage Cable Assembly
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience superior performance with our 15 kVDC Double-Ended High Voltage Cable Assembly. Designed for reliability under extreme conditions, this assembly features a durable plastic insulator, BeCu contact material with gold finish, and an altitude rating of 70,000 ft. With a current rating of 10A and operating temperature range of -55 to 95°C, it ensures consistent functionality. Tested at 18 kVDC, this assembly is compatible with various lead assemblies, offering standard coupling style and threaded sealing for secure connections.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Contact Properties Contact Finish
Gold
Contact Properties Contact Material
BeCu with CRES hood
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Double-Ended Plug Cable Assembly
Specifications Coupling Style
Threaded
Specifications Current Rating
10 A
Specifications Export Classification
TBD
Specifications Insulator Material
Plastic
Specifications Mating Compatibility
All C 737 lead assembliesAll series 737 lead assembliesAll LGH 1/2I lead assemblies
Specifications Operating Temperature
-55 to 95 ºC
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
N/A
Specifications Series
C 737
Specifications Standardnon Standard
Standard Part
Specifications Test Voltage
18 kVDC
Specifications Voltage Rating
15 kVDC
Specifications Wire Insulation
White 0.160 Dia. silicone rubber, #AWG 16
