15 kVDC Double-Ended Plug Cable Assembly - 1807 Series
15 kVDC Double-Ended Plug Cable Assembly - 1807 Series
SKU:HIG-487d7a
High-performance 15 kVDC Double-Ended Plug Cable Assembly for military and aerospace applications.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
15 kVDC Double-Ended Plug Cable Assembly - 1807 Series
$289.99
Quantity: 1
Claim Your Seller Account
15 kVDC Double-Ended Plug Cable Assembly - 1807 Series
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 15 kVDC Double-Ended Plug Cable Assembly from the 1807 Series is a ruggedized 7-pin connector suitable for a wide range of applications, from military vehicles to aerospace technology. With a voltage rating of 15 kVDC, altitude rating of 70,000 ft, and operating temperature range of -55 to 125 °C, this assembly is ideal for high-power TWTs and RADAR power supplies. Featuring non-shielded wire insulation, brass contacts with gold finish, and aluminum coupling nut with nickel finish, this assembly ensures reliable performance under demanding conditions.
Product Specifications
Application 0
15 kVDCRated at 15 kVDC at altitudes up to 70,000 feet, these 7 pin connectors are ideal for higher power TWTs and RADAR power supplies.
Body Properties Body Lubricant
Dry Lube
Contact Properties Contact Finish
Gold
Contact Properties Contact Material
Brass
Coupling Nut Properties Coupling Nut Finish
Nickel
Coupling Nut Properties Coupling Nut Material
Aluminum
Specifications Accomodates Wire Diameter
0.080 in | 2.032 mm
Specifications Altitude Rating
70,000 ft
Specifications Assembly
Double-Ended Plug Cable Assembly
Specifications Braid Termination
Clamp

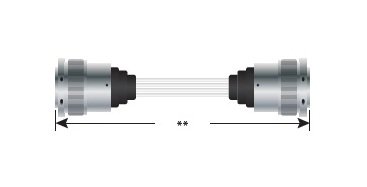

Specifications Cable Assembly Length
All cable assembly cable lengths are to be specified in inches only. For example, to order part number 178-6027 with a cable length of 10 feet 8 inches the cable assembly part number would be specified as 178-6027-128N.
Specifications Coupling Style
Bayonet
Specifications Current Rating
7.5 A
Specifications End 1
167-9709
Specifications End 2
167-9709
Specifications Manufacturing Notes
Contact Teledyne Reynold's Engineering to discuss custom designs. | Product numbers and specs subject to change without notice. | Products listed represent only a small selection of Teledyne Reynold's products please visit www.teledynereynolds.com for the most up to date product information.
Specifications Mating Compatibility
Mates all series 1807 bayonet receptacles
Specifications Number Of Contacts
7
Specifications Operating Temperature
-55 to 125 ºC
Specifications Sealed Receptacle
No
Specifications Series
1807
Specifications Standardnon Standard
Standard Part
Specifications Test Voltage At 70000 Ft
22 kVDC
Specifications Threaded Coupling Available
Yes
Specifications Voltage Rating
15 kVDC
Specifications Wire Insulation
FEP
Specifications Wire Type
Non-Shielded
Wire Specifications Conductor Awg
20
Wire Specifications Conductor Plating
TPC
Wire Specifications Conductor Strands
19/32
Wire Specifications Insulation Material
FEP
Wire Specifications Insulator Diameter
0.080 in | 2.03 mm
Wire Specifications Operating Voltage
21 kVDC
Wire Specifications Part
167-9543
