15 kVDC HH57 Series Ceramic Capacitors
15 kVDC HH57 Series Ceramic Capacitors
SKU:CER-ddfa96
High-capacitance 15 kVDC ceramic capacitors with broadcast barrel package and excellent humidity protection for reliable performance in demanding applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
15 kVDC HH57 Series Ceramic Capacitors
$29.99
Quantity: 1
Claim Your Seller Account
15 kVDC HH57 Series Ceramic Capacitors
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The HH57 Series Ceramic Capacitors are compact high-capacitance parts designed for 15 kVDC power ratings. Featuring a broadcast barrel package with metric or English terminals and three Class II dielectrics, these capacitors offer a capacitance of 1000 pF with a Dielectric (TC) of X5T. With a wide operating temperature range of -55 to +85 ºC and excellent humidity protection, these capacitors are ideal for applications requiring high reliability and performance. The silver-plated terminals ensure strong connections and durability, meeting the stringent requirements of institutional and government procurement standards.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Cap
1000 pF
Specifications Capacitance Tolerance
±10% | ±20%
Specifications Dielectric Characteristic
+22%, -33% capacitance change with temperature over -55ºC to +85ºC
Specifications Dielectric Strength
Will withstand an AC potential of 1.5 times Rated Working Voltage for 10 Seconds at 25ºC.
Specifications Dielectric Tc
X5T
Specifications Dissipation Factor
1.5% Maximum when measured at a frequency of 1 kHz and 25 ºC

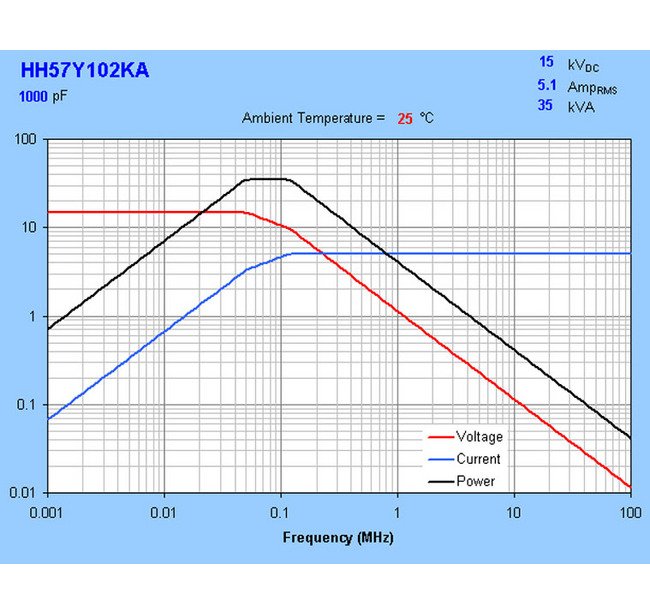

Specifications Fh
0.118 MHz
Specifications Fl
0.0495 MHz
Specifications Humidity Protection
Nonconductive Coating
Specifications Imax Rms
5.10 A
Specifications Minimum Insulation Resistance At 100 Vdc
10000 MΩ
Specifications Operating Temperature Range
-55 to +85 ºC
Specifications Smax
35 kV·A
Specifications Standard Markings
"HEC", Capacitance, Tolerance, Rated Working Voltage (VDC) and Date Code
Specifications Storage Temperature Range
-55 to +125 ºC
Specifications Terminal
Silver Plated
Specifications Terminal Strength
Maximum applied torque to be 20 inch-pounds or less

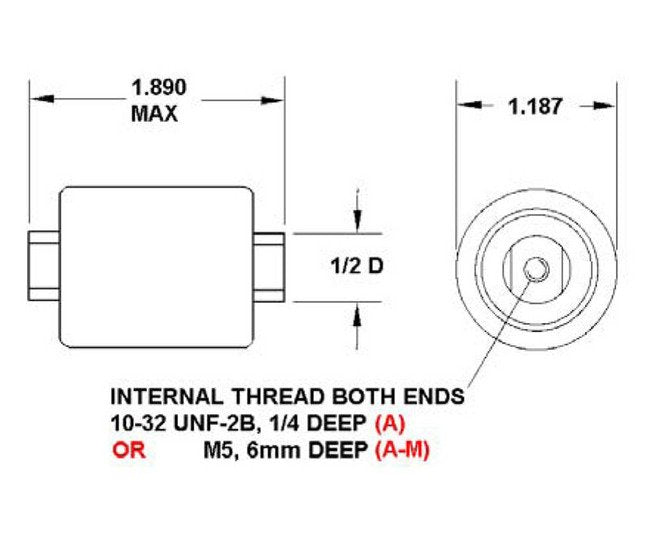

Specifications Thread
10-32
Specifications Vmax Dc
15 kV
