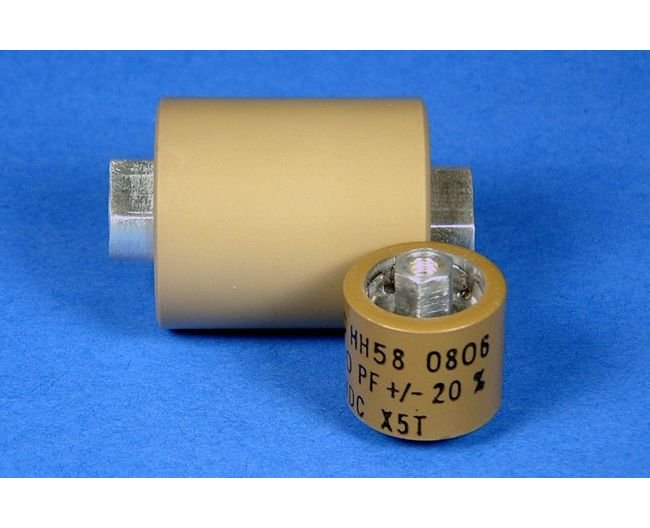

The 15 kVDC HH57 Series Ceramic Capacitors with X5T Dielectric are compact high-capacitance parts designed for precise power applications. Featuring a broadcast barrel package with silver-plated terminals in metric or English options, these capacitors offer a capacitance of 1500 pF with a capacitance tolerance of ±10% | ±20%. With a robust design, they deliver exceptional performance with a dielectric strength that withstands 1.5 times the rated working voltage for 10 seconds, ensuring reliable operation in a wide temperature range from -55 to +85 ºC. Ideal for institutional purposes requiring high voltage and precision, these capacitors provide superior resilience and efficiency for critical electrical systems.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Cap
1500 pF
Specifications Capacitance Tolerance
±10% | ±20%
Specifications Dielectric Characteristic
+22%, -33% capacitance change with temperature over -55ºC to +85ºC
Specifications Dielectric Strength
Will withstand an AC potential of 1.5 times Rated Working Voltage for 10 Seconds at 25ºC.
Specifications Dielectric Tc
X5T
Specifications Dissipation Factor
1.5% Maximum when measured at a frequency of 1 kHz and 25 ºC

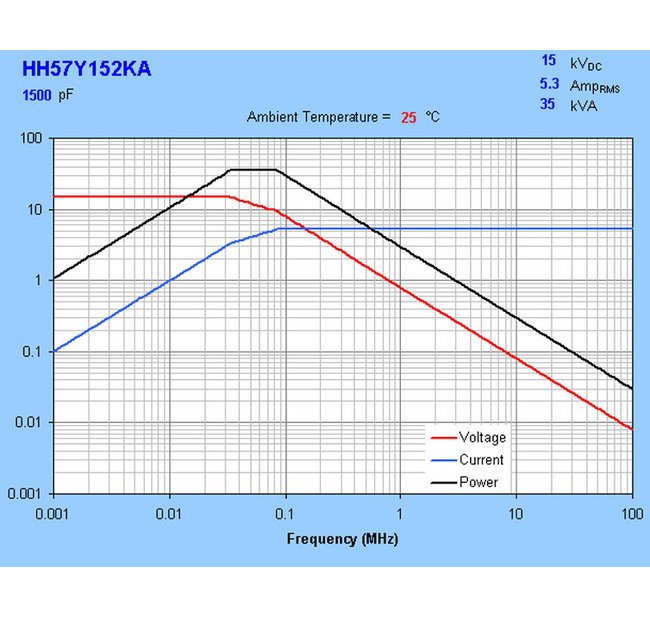

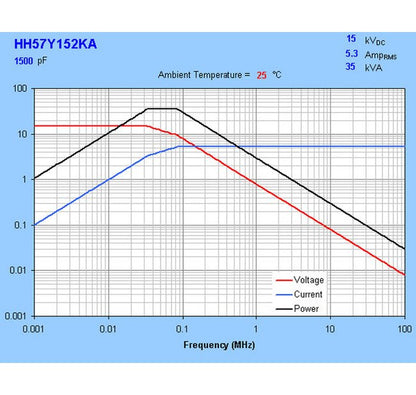

Specifications Fh
0.0851 MHz
Specifications Fl
0.0330 MHz
Specifications Humidity Protection
Nonconductive Coating
Specifications Imax Rms
5.30 A
Specifications Minimum Insulation Resistance At 100 Vdc
10000 MΩ
Specifications Operating Temperature Range
-55 to +85 ºC
Specifications Smax
35 kV·A
Specifications Standard Markings
"HEC", Capacitance, Tolerance, Rated Working Voltage (VDC) and Date Code
Specifications Storage Temperature Range
-55 to +125 ºC
Specifications Terminal
Silver Plated
Specifications Terminal Strength
Maximum applied torque to be 20 inch-pounds or less

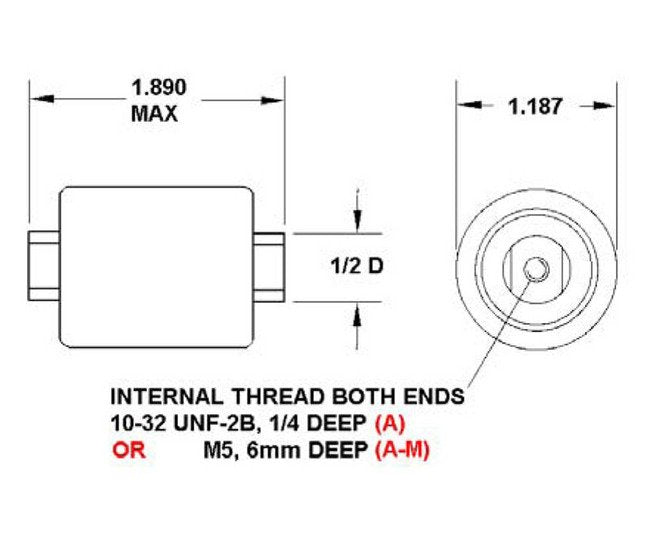

Specifications Thread
10-32
Specifications Vmax Dc
15 kV
