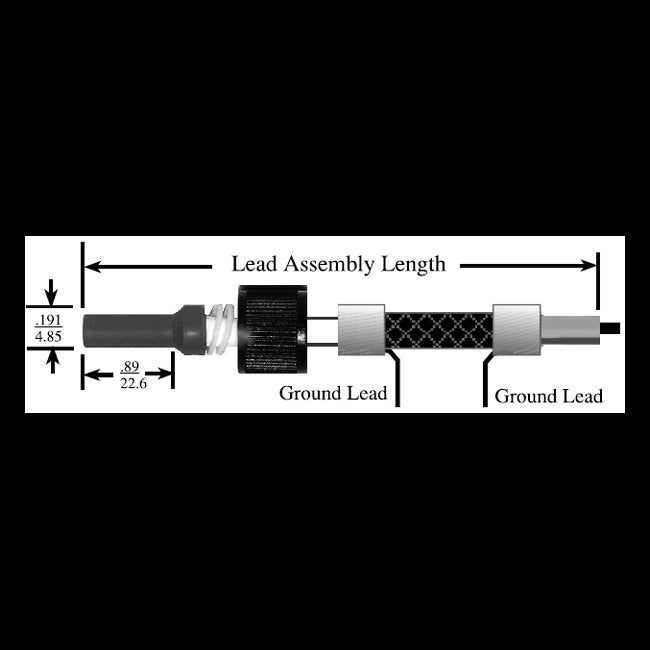

15 kVDC Shielded Single Pin Connector Cable Assembly
15 kVDC Shielded Single Pin Connector Cable Assembly
SKU:HIG-b1e840
Highly durable 15 kVDC Shielded Single Pin Connector Cable Assembly for reliable high voltage applications.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
15 kVDC Shielded Single Pin Connector Cable Assembly
$49.99
Quantity: 1
Claim Your Seller Account
15 kVDC Shielded Single Pin Connector Cable Assembly
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 15 kVDC Shielded Single Pin Connector Cable Assembly is designed to meet the demanding requirements of high voltage applications. It features a Single-Ended Plug Cable Assembly with an Altitude/Reduced Pressure Rating of 70,000 ft. The cable is made of white 0.160 Dia. silicone rubber with #AWG 16 wire insulation, ensuring durability and safety. With a Test Voltage of 18 kVDC and a Current Rating of 10 A, this assembly is ideal for use in various environments. The Contact Properties include BeCu with CRES hood and a gold finish, providing reliable electrical connections.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Contact Properties Contact Finish
Gold
Contact Properties Contact Material
BeCu with CRES hood
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Single-Ended Plug Cable Assembly
Specifications Coupling Style
Threaded
Specifications Current Rating
10 A
Specifications Export Classification
TBD
Specifications Insulator Material
Plastic
Specifications Mating Compatibility
All C 737 lead assembliesAll series 737 lead assembliesAll LGH 1/2I lead assemblies
Specifications Operating Temperature
-55 to 95 ºC
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
N/A
Specifications Series
C 737
Specifications Standardnon Standard
Standard Part
Specifications Test Voltage
18 kVDC
Specifications Voltage Rating
15 kVDC
Specifications Wire Insulation
White 0.160 Dia. silicone rubber, #AWG 16
