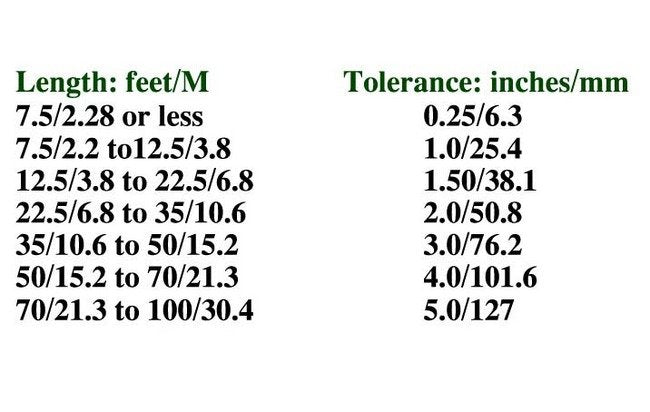

  • 15 kVDC SID Series Double-Ended Hybrid Plug Cable Assembly - Image 2
1 2
Teledyne Reynolds →

15 kVDC SID Series Double-Ended Hybrid Plug Cable Assembly

15 kVDC SID Series Double-Ended Hybrid Plug Cable Assembly

HIG-5ca2a5

Reliable 15 kVDC hybrid plug cable assembly for military & aerospace applications. Vibration, shock & temperature resistant. Silicone insulator & BeCu contacts.

$129.99
$129.99
Sale

Initiate Order

15 kVDC SID Series Double-Ended Hybrid Plug Cable Assembly

15 kVDC SID Series Double-Ended Hybrid Plug Cable Assembly

$129.99

Quantity: 1

Claim Your Seller Account

15 kVDC SID Series Double-Ended Hybrid Plug Cable Assembly

15 kVDC SID Series Double-Ended Hybrid Plug Cable Assembly

$129.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The 15 kVDC SID Series Double-Ended Hybrid Plug Cable Assembly is designed for high voltage applications in military and aerospace sectors. Featuring a reliable push-on/pull-off design, this assembly ensures a secure 15 kVDC connection. With exceptional performance under vibration, shock, and extreme temperatures, it is ideal for demanding environments. The silicone insulator material and BeCu contact finish enhance durability and conductivity, making it a top choice for critical applications.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Body Properties Coupling Nut Material
Silicone
Contact Properties Contact Finish
Au with CRES Hood
Contact Properties Contact Material
BeCu
Contact Properties Contact Type
Female
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Double-Ended Hybrid Plug Cable Assembly
Specifications Coupling Style
Push-Pull
Specifications Current Rating
5 Amp
Specifications Export Classification
TBD
Specifications Insulator Material
Silicone
Specifications Mating Compatibility
Mates all SID receptacles
Specifications Operating Temperature
-55 to 95 ºC
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
N/A
Specifications Series
SID
Specifications Standardnon Standard
Non-standard Part
Specifications Test Voltage
20 kVDC at 70,000 ft. altitude (simulated)
Specifications Voltage Rating
15 kVDC
Specifications Wire Type
Non-Shielded
Wire Properties Accomodates Wire Diameter
0.180 in | 4.5 mm
Wire Properties Wire Insulation
Silicone | Silicone Rubber
