15 kVDC SID Series Non-Sealed 4-Receptacle Block
15 kVDC SID Series Non-Sealed 4-Receptacle Block
SKU:HIG-408476
Reliable 15 kVDC SID Series Receptacle Block for military and aerospace applications. Precision-cuttable and vibration-resistant with excellent corona characteristics.
Regular price
$79.99
Regular price
Sale price
$79.99
Unit price
per
Initiate Order
15 kVDC SID Series Non-Sealed 4-Receptacle Block
$79.99
Quantity: 1
Claim Your Seller Account
15 kVDC SID Series Non-Sealed 4-Receptacle Block
$79.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

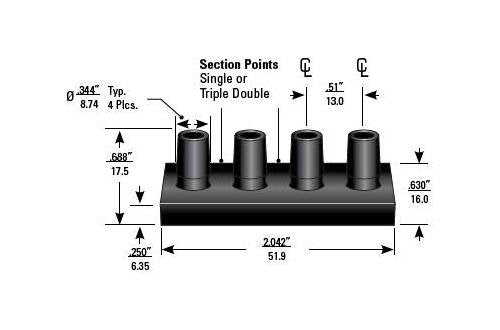

The 15 kVDC SID Series Receptacle Block offers a reliable high voltage connection designed for military and aerospace applications. Featuring a push-on/pull-off design, this non-sealed receptacle block is engineered to withstand vibration, shock, altitude, and extreme temperatures. With excellent corona characteristics, it can be precision cut by the customer for customization. Mates with all SID cable assemblies and is ideal for encapsulation or bonding.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Body Properties Coupling Nut Material
Molded Plastic
Contact Properties Contact Finish
Gold
Contact Properties Contact Material
Brass
Contact Properties Contact Terminal Type
Flush solder tube (4 places)
Contact Properties Contact Type
Male
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Receptacle Bag Assembly
Specifications Coupling Style
Push-Pull
Specifications Current Rating
5 Amp
Specifications Export Classification
TBD
Specifications Insulator Material
Plastic
Specifications Mating Compatibility
Mates all SID cable assemblies
Specifications Mounting Notes
Designed for encapsulation or bonding
Specifications Operating Temperature
-55 to 95 ºC
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
Yes
Specifications Series
SID
Specifications Standardnon Standard
Standard Part
Specifications Test Voltage
20 kVDC at 70,000 ft. altitude (simulated)
Specifications Voltage Rating
15 kVDC
