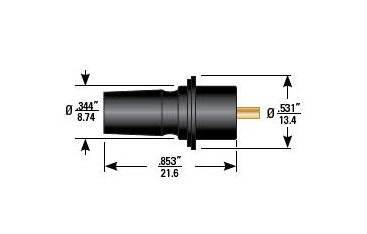

15 kVDC SID Series Non-Sealed Front Mount Plastic Receptacle
15 kVDC SID Series Non-Sealed Front Mount Plastic Receptacle
SKU:HIG-a4d808
Reliable 15 kVDC high voltage connection with unique sealing system for military and aerospace use.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
15 kVDC SID Series Non-Sealed Front Mount Plastic Receptacle
$49.99
Quantity: 1
Claim Your Seller Account
15 kVDC SID Series Non-Sealed Front Mount Plastic Receptacle
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 15 kVDC SID Series Receptacle, designed for military and aerospace applications, offers a secure high voltage connection with a unique interface sealing system for performance under extreme conditions. Featuring a front mount panel style and a durable plastic flanged construction, this connector ensures reliability and excellent corona characteristics. With a current rating of 5 Amp and an operating temperature range of -55 to 95 ºC, this connector is ideal for applications requiring stability and resilience.
Product Specifications
Body Properties Coupling Nut Material
Molded Plastic
Contact Properties Contact Finish
Gold
Contact Properties Contact Material
Brass
Contact Properties Contact Terminal Type
Flush to recessed solder tube
Contact Properties Contact Type
Male
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Receptacle Bag Assembly
Specifications Coupling Style
Push-Pull
Specifications Current Rating
5 Amp
Specifications Export Classification
TBD
Specifications Insulator Material
Plastic
Specifications Mating Compatibility
Mates all SID cable assemblies
Specifications Mounting Notes
Designed for encapsulation or bonding
Specifications Operating Temperature
-55 to 95 ºC
Specifications Panel Mounting Style
Front Mount
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
Yes
Specifications Series
SID
Specifications Standardnon Standard
Standard Part
Specifications Test Voltage
20 kVDC at 70,000 ft. altitude (simulated)
Specifications Voltage Rating
15 kVDC
