15 kVDC SID Series Sealed Front Mount Receptacle with Solder Flange
15 kVDC SID Series Sealed Front Mount Receptacle with Solder Flange
SKU:HIG-2a6686
Reliable 15 kVDC high voltage receptacle with unique sealing system for military and aerospace applications.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
15 kVDC SID Series Sealed Front Mount Receptacle with Solder Flange
$99.99
Quantity: 1
Claim Your Seller Account
15 kVDC SID Series Sealed Front Mount Receptacle with Solder Flange
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 15 kVDC SID Series Receptacle is designed for high voltage connections in military and aerospace applications, featuring a unique interface sealing system that ensures reliable performance under extreme conditions. With a current rating of 5 Amp and an operational temperature range of -55°C to 95°C, this receptacle is sealed for 1 ATM pressure differential and offers excellent corona characteristics. The male contact type with exposed solder tube terminal, brass contact material with gold finish, and molded plastic coupling nut material enhance its durability and performance. Ideal for institutional buyers seeking robust high voltage connectors that meet stringent standards.
Product Specifications
Body Properties Coupling Nut Material
Molded Plastic
Contact Properties Contact Finish
Gold
Contact Properties Contact Material
Brass
Contact Properties Contact Terminal Type
Exposed solder tube
Contact Properties Contact Type
Male
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Receptacle Bag Assembly
Specifications Coupling Style
Push-Pull
Specifications Current Rating
5 Amp
Specifications Export Classification
TBD
Specifications Insulator Material
Plastic
Specifications Mating Compatibility
Mates all SID cable assemblies
Specifications Maximum Leak Rate Helium
1 X 10-6 cc/sec

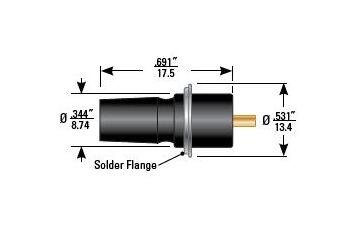

Specifications Mounting Notes
Solder Flange
Specifications Operating Temperature
-55 to 95 ºC
Specifications Panel Mounting Style
Front Mount
Specifications Pressure Differential Rating
Sealed for 1 ATM
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
Yes
Specifications Series
SID
Specifications Standardnon Standard
Standard Part
Specifications Test Voltage
20 kVDC at 70,000 ft. altitude (simulated)
Specifications Voltage Rating
15 kVDC
