The 15 kVDC SID Series Sealed Rear-Mount Flanged Jam Nut Receptacle is a high-quality push-on/pull-off connector designed for military and aerospace applications. With a unique interface sealing system, this connector excels under extreme conditions, including vibration, shock, altitude up to 70,000 ft., and temperatures ranging from -55 to 95°C. Its superior corona characteristics make it a reliable choice for high voltage connections. Featuring a rear-mount design with a jam nut flange and 'O' ring flange seal, this receptacle ensures secure panel mounting. It has a current rating of 5 Amp and meets rigorous standards for leakage, insulator material, contact properties, and body construction.
Ready to Grow Without Cash Flow Constraints?

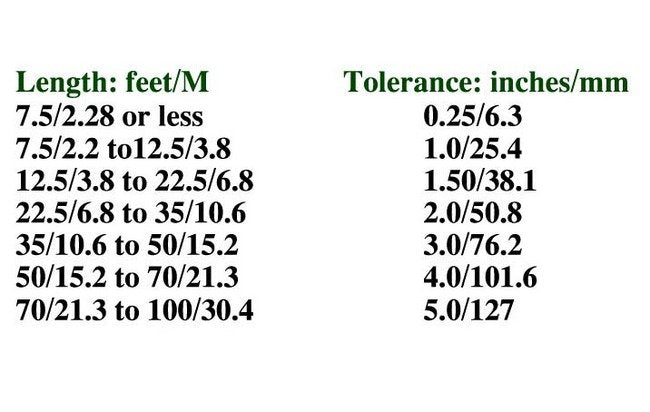

Product Specifications
Body Properties Coupling Nut Material
Molded Plastic
Contact Properties Contact Finish
Gold
Contact Properties Contact Material
Brass
Contact Properties Contact Terminal Type
Exposed solder tube
Contact Properties Contact Type
Male
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Receptacle Bag Assembly
Specifications Coupling Style
Push-Pull
Specifications Current Rating
5 Amp
Specifications Export Classification
TBD
Specifications Insulator Material
Plastic
Specifications Mating Compatibility
Mates all SID cable assemblies
Specifications Maximum Leak Rate Helium
1 X 10-6 cc/sec
Specifications Mounting Notes
Jam nut flang
Specifications Operating Temperature
-55 to 95 ºC
Specifications Panel Mounting Style
Rear Mount
Specifications Panel Seal Type
"O" ring flange seal
Specifications Pressure Differential Rating
Sealed for 1 ATM
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
Yes
Specifications Series
SID
Specifications Standardnon Standard
Standard Part
Specifications Test Voltage
20 kVDC at 70,000 ft. altitude (simulated)
Specifications Voltage Rating
15 kVDC
