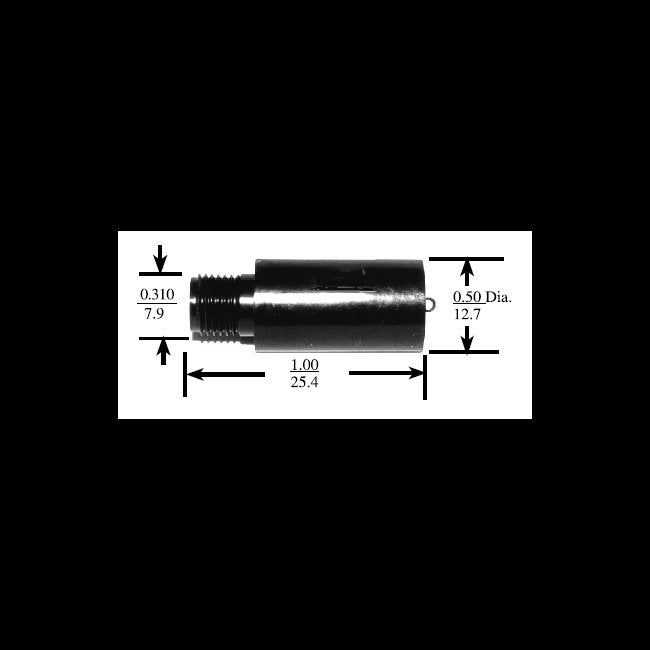

15 kVDC Single-Ended Plug Cable Assembly
15 kVDC Single-Ended Plug Cable Assembly
SKU:HIG-be558b
Power up your systems with the 15 kVDC Single-Ended Plug Cable Assembly from our high voltage connectors range. Reliable, durable, and high performing.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
15 kVDC Single-Ended Plug Cable Assembly
$49.99
Quantity: 1
Claim Your Seller Account
15 kVDC Single-Ended Plug Cable Assembly
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Meet your high voltage interconnection needs with the 15 kVDC Single-Ended Plug Cable Assembly from our C Series LGH™ Compatible High Voltage Cable Assemblies line. Designed for applications like CRT displays, ECM equipment, and radar systems, this assembly features a Series C 737 lead assembly, 18 kVDC test voltage, and a current rating of 10 A. With a durable plastic insulator and gold-finished BeCu contacts, this threaded coupling style assembly ensures reliable performance in temperatures ranging from -55 to 95°C.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Contact Properties Contact Finish
Gold
Contact Properties Contact Material
BeCu with CRES hood
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Single-Ended Plug Cable Assembly
Specifications Coupling Style
Threaded
Specifications Current Rating
10 A
Specifications Export Classification
TBD
Specifications Insulator Material
Plastic
Specifications Mating Compatibility
All C 737 lead assembliesAll series 737 lead assembliesAll LGH 1/2I lead assemblies
Specifications Operating Temperature
-55 to 95 ºC
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
N/A
Specifications Series
C 737
Specifications Standardnon Standard
Standard Part
Specifications Test Voltage
18 kVDC
Specifications Voltage Rating
15 kVDC
