15 Series Circuit Board Support with Adhesive Base

Name: 15 Series Circuit Board Support with Adhesive Base
Brand: All Electronics Hardware
SKU: 01C-043bf0
Price: 14.99 USD
Availability: OutOfStock

SKU:01C-043bf0

Secure your circuit boards with ease using the 15 Series Circuit Board Support on Adhesive Base. Made of Nylon 66 UL94V-2 material, RoHS compliant with -40 to 185F temp range.

$14.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 15 Series Circuit Board Support with Adhesive Base is a versatile and reliable solution for securing circuit boards. Made from Nylon 66 UL94V-2 material, this support features a Mounting Hole Diameter of .156 ± .010 inches and can accommodate Board Thicknesses of up to .062 inches. Its adhesive base ensures easy installation, while its RoHS compliance guarantees environmental safety. With a temperature range of -40 to 185F, this support is suitable for a variety of applications, offering durability and stability for your circuit boards.

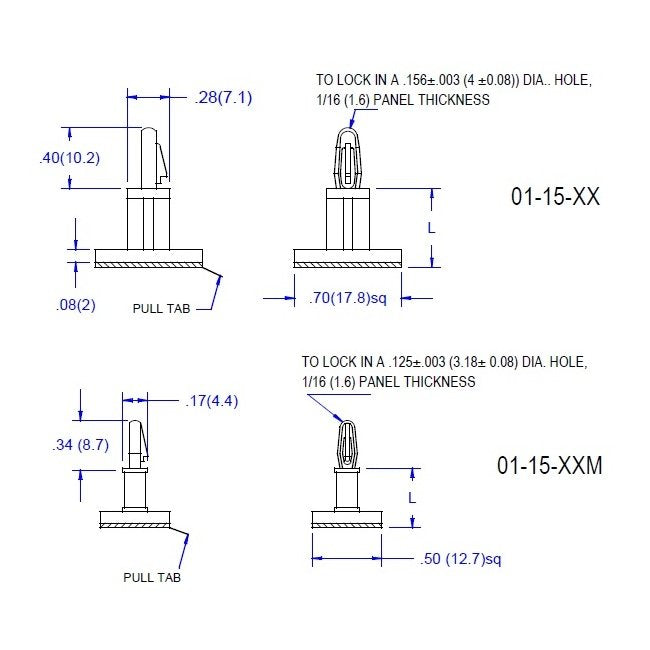

Product Specifications

Specifications Board Thickness

.062 ± .010 (1.57) inches (mm)

Specifications Dim L

.187 ± .015 (4.8) inches (mm)

Specifications Material Code

UL94V-2

Specifications Mounting Hole Diameter

.156 ± .010 (4.0) inches (mm)
