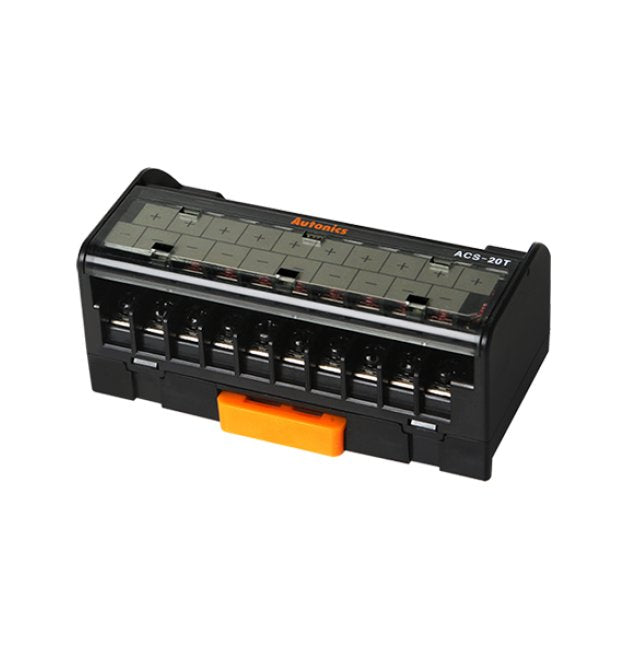

-15 to 55°C Environment Ambient I/O Terminal Block
-15 to 55°C Environment Ambient I/O Terminal Block
SKU:PRO-ffa753
Durable -15 to 55°C I/O Terminal Block with 20 screw terminals for versatile connectivity in varied environments.
Regular price
$16.95
Regular price
Sale price
$16.95
Unit price
per
Initiate Order
-15 to 55°C Environment Ambient I/O Terminal Block
$16.95
Quantity: 1
Claim Your Seller Account
-15 to 55°C Environment Ambient I/O Terminal Block
$16.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The -15 to 55°C Environment Ambient I/O Terminal Block is a versatile connectivity solution with 20 screw terminals, constructed with durable Brass terminal pin material and modified MPPO case. It meets European Conformity (CE) and Underwriter Laboratories (UL) standards, offering a maximum rated current of 10A at 125VDC/AC. With a wide operating temperature range, sturdy construction, and optimized terminal pitch of 7mm, this terminal block ensures reliable performance in diverse environments. Ideal for industrial, commercial, and institutional applications.
Product Specifications
Specifications Alternating Current Ac Dielectric Strength At 506
600 V
Specifications Applicable Cable
22-16 AWG | 0.30 to 1.25 mm²
Specifications Approval
European Conformity (CE) | Underwriter Laboratories (UL) Listed
Specifications Approximate Packaged Weight
92 g
Specifications Approximate Weight
61 g
Specifications Case Material
Modified Polyphenylene Oxide (MPPO)
Specifications Common Type
Screw (Top+COM, Bottom-COM)
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
-15 to 55 ºC
Specifications Environment Storage Relative Humidity Rh
35 to 85 %
Specifications Environment Storage Temperature
-25 to 65 ºC
Specifications Insulation Resistance At 500 Volt V Direct Curren
â¥1,000 MΩ
Specifications List Price
16.95 USD
Specifications Maximum Alternating Current Ac Rated Voltage
125 V
Specifications Maximum Direct Current Dc Rated Voltage
125
Specifications Maximum Rated Current
10 A
Specifications Number Of Terminals
20 Each
Specifications Rated Frequency
50 Hz | 60 Hz
Specifications Terminal Pin Material
Brass
Specifications Terminal Pitch
7.0 mm
Specifications Terminal Type
Screw
Specifications Weight
1 lb
