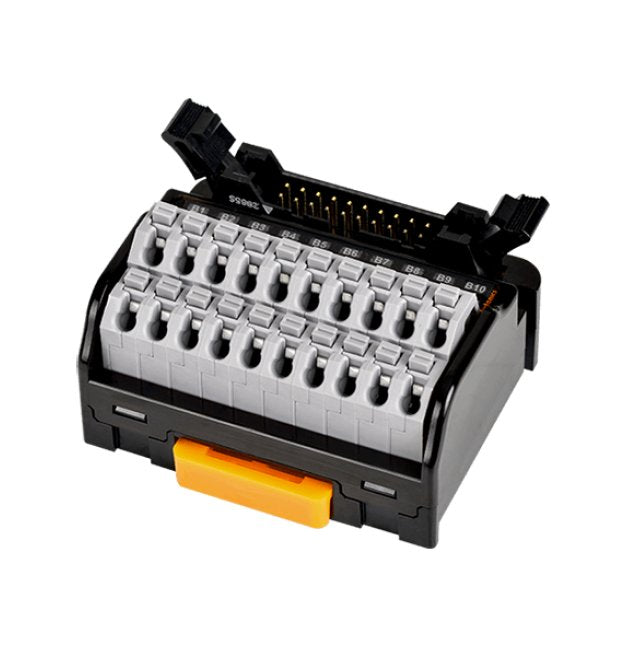

The -15 to 55°C Environment I/O Terminal Block offers a robust and reliable connectivity solution. With a screwless interface, 20-pin design, and 20 terminals, it provides secure connections in demanding environments. This terminal block is designed with a Polycarbonate base and case material, ensuring durability. It meets European Conformity (CE) and cULus Listed standards, making it suitable for a wide range of applications. The Ingress Protection (IP) 20 rating and high insulation resistance enhance safety and performance in varied settings.
Product Specifications
Specifications Alternating Current Ac Dielectric Strength At 506
2,700 V
Specifications Alternating Current Ac Rated Voltage
⤠125 V
Specifications Approval
European Conformity (CE) | Underwriters Laboratory for Canada and United States (cULus) Listed
Specifications Approximate Packaged Weight
86.2 g
Specifications Approximate Weight
48.5 g
Specifications Base Material
Polycarbonate
Specifications Case Material
Polycarbonate (PC)
Specifications Direct Current Dc Rated Voltage
⤠125 V
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
-15 to 55 ºC
Specifications Environment Storage Relative Humidity Rh
35 to 85 %
Specifications Environment Storage Temperature
-25 to 65 ºC
Specifications Insulation Resistance At 500 Volt V Direct Curren
â¥1,000 MΩ
Specifications List Price
36.95 USD
Specifications Number Of Connector Pins
20
Specifications Number Of Terminals
20 Each
Specifications Protection Structure
Ingress Protection (IP) 20 (International Electrotechnical Commission (IEC) Standard)
Specifications Rated Current
&l; 1 A
Specifications Rated Frequency
50 Hz | 60 Hz
Specifications Terminal Pitch
5.0 mm
Specifications Terminal Type
Screwless
Specifications Weight
0.2 lb
