-15 to 55°C Environment I/O Terminal Block
-15 to 55°C Environment I/O Terminal Block
SKU:PRO-c3d9ef
Reliable -15 to 55°C I/O Terminal Block for industrial connectivity needs.
Regular price
$36.95
Regular price
Sale price
$36.95
Unit price
per
Initiate Order
-15 to 55°C Environment I/O Terminal Block
$36.95
Quantity: 1
Claim Your Seller Account
-15 to 55°C Environment I/O Terminal Block
$36.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

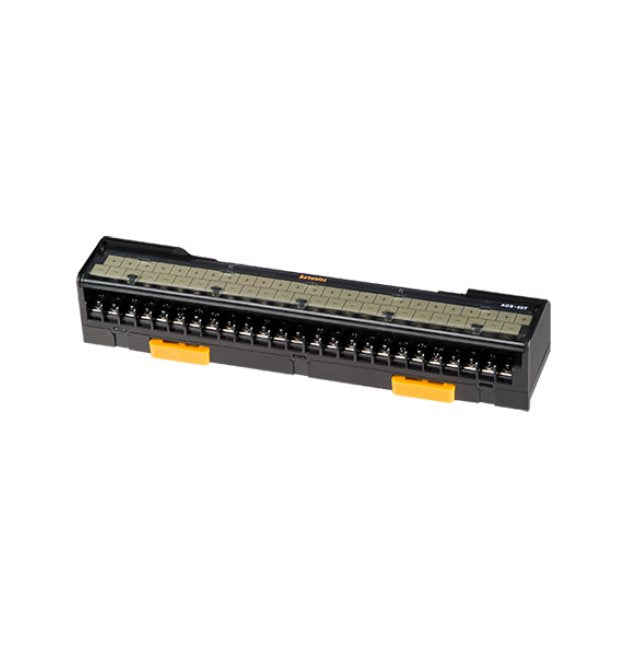

The -15 to 55°C Environment I/O Terminal Block is a robust connectivity solution designed for industrial applications. With 50 screw terminals, top+COM and bottom-COM configuration, and a terminal pitch of 7mm, this UL Listed terminal block can withstand voltage up to 125VDC/AC and a maximum current of 10A. Constructed with MPPO case material and brass terminal pins, it offers reliable performance in temperatures ranging from -15 to 55°C with a humidity tolerance of 35 to 85%. Suitable for 22-16 AWG cables, this terminal block is DIN rail mountable, ensuring secure and efficient installations.
Product Specifications
Specifications Alternating Current Ac Dielectric Strength At 506
600 V
Specifications Applicable Cable
22-16 AWG | 0.30 to 1.25 mm²
Specifications Approval
European Conformity (CE) | Underwriter Laboratories (UL) Listed
Specifications Approximate Packaged Weight
189 g
Specifications Approximate Weight
141 g
Specifications Case Material
Modified Polyphenylene Oxide (MPPO)
Specifications Common Type
Screw (Left+COM, Right-COM)
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
-15 to 55 ºC
Specifications Environment Storage Relative Humidity Rh
35 to 85 %
Specifications Environment Storage Temperature
-25 to 65 ºC
Specifications Insulation Resistance At 500 Volt V Direct Curren
â¥1,000 MΩ
Specifications List Price
36.95 USD
Specifications Maximum Direct Current Dc Rated Voltage
125
Specifications Maximum Rated Current
10 A
Specifications Number Of Terminals
50 Each
Specifications Rated Frequency
50 Hz | 60 Hz
Specifications Terminal Pin Material
Brass
Specifications Terminal Pitch
7.0 mm
Specifications Terminal Type
Screw
Specifications Weight
1 lb
