-15 to 55°C Environment I/O Terminal Block

-15 to 55°C Environment I/O Terminal Block

PRO-5876e2

High-performance I/O Terminal Block for NPN Input with Varistor, -15 to 55°C operating temp, Blue LED indicator, CE/cULus Listed

$18.95
$18.95
Sale

Initiate Order

-15 to 55°C Environment I/O Terminal Block

-15 to 55°C Environment I/O Terminal Block

$18.95

Quantity: 1

Claim Your Seller Account

-15 to 55°C Environment I/O Terminal Block

-15 to 55°C Environment I/O Terminal Block

$18.95

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

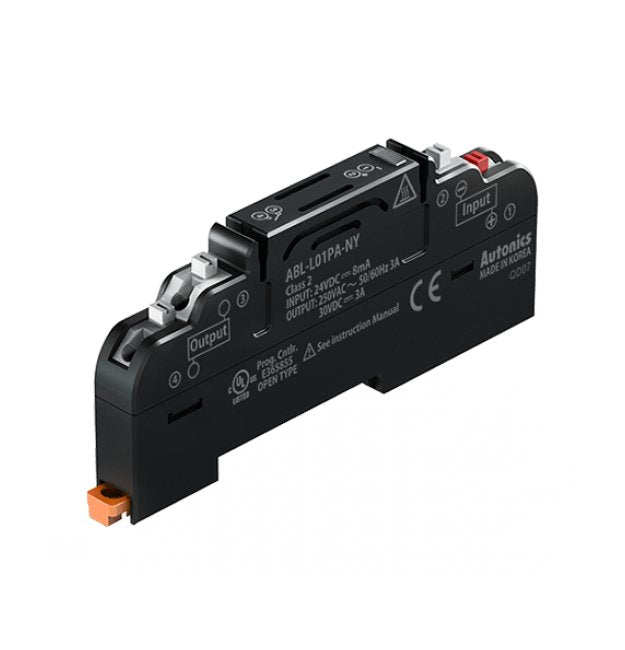

The -15 to 55°C Environment I/O Terminal Block is a high-performance relay terminal block designed for NPN Input with a Varistor installed type. It features a current consumption of ≤ 8 mA and is crafted with durable materials including Brass conducting plates, Polyphenylene Sulfide base and case materials, and Polyamide 66 terminal block material. With a Blue LED operation indicator and Ingress Protection (IP) 20 rating, this terminal block offers reliable performance in temperatures ranging from -15 to 55°C. It meets European Conformity (CE) and cULus Listed standards, making it ideal for various industrial applications.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Specifications 24 Volt V Direct Current Dc Rated Voltage Toleran
±10 %
Specifications Alternating Current Ac Dielectric Strength Betwee
1,000 V
Specifications Alternating Current Ac Rated Voltage
250 V
Specifications Applicable Cable Diameter Solid Wire 60 Degree Ce
0.6 to 1.25 mm
Specifications Applicable Cable Stranded Wire 60 Degree Celsius
22-16 AWG
Specifications Applied Relay
APAN3124 [MATSUSHITA (Panasonic)]
Specifications Approval
European Conformity (CE) | Underwriters Laboratory for Canada and United States (cULus) Listed
Specifications Approximate Packaged Weight
138 g
Specifications Approximate Weight
21 g
Specifications Base Material
Polyphenylene Sulfide
Specifications Case Material
Polyphenylene Sulfide
Specifications Conducting Plate
Brass
Specifications Current Consumption
≤ 8 mA
Specifications Direct Current Dc Rated Voltage
24 V | 30 V
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
-15 to 55 ºC
Specifications Environment Storage Relative Humidity Rh
35 to 85 %
Specifications Environment Storage Temperature
-25 to 65 ºC
Specifications Insulation Resistance At 500 Volt V Direct Curren
≥1,000 MΩ
Specifications List Price
18.95 USD
Specifications Note For Terminal Pitch
Arranging over 2 units
Specifications Number Of Relay Points
1-Point
Specifications Operation Indicator
Blue Light Emitting Diode (LED)
Specifications Protection Structure
Ingress Protection (IP) 20 (International Electrotechnical Commission (IEC) Standard)
Specifications Rated Current
3 A
Specifications Rated Frequency
50 Hz | 60 Hz
Specifications Terminal Block Material
Polyamide 66
Specifications Terminal Pitch
9.0 mm
Specifications Terminal Type
Screwless
Specifications Weight
0.2 lb
