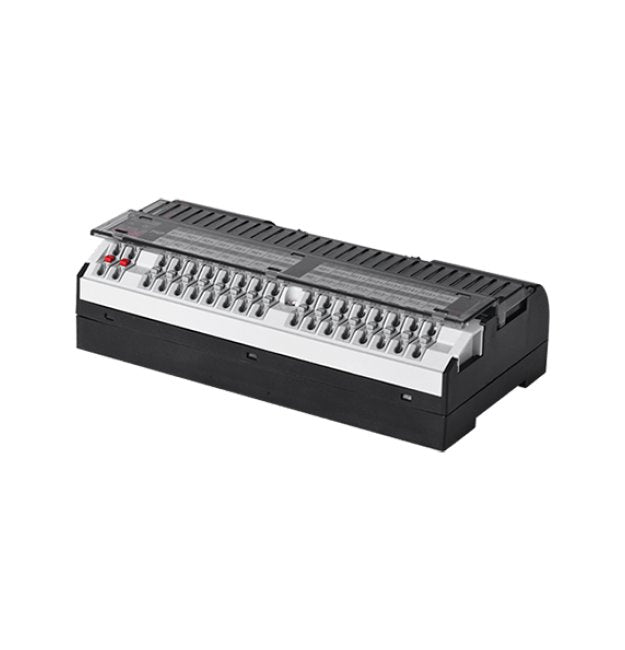

The -15 to 55°C Environment I/O Terminal Block is a reliable solution for relay applications, featuring a 16-point NPN input with Omron G6B compatibility. With a wide operating temperature range, CE and cULus approvals, and screwless terminal type, this terminal block offers ease of installation and high performance in industrial environments.
Product Specifications
Accessories Accessories
Jumper Bar: 2
Specifications 24 Volt V Direct Current Dc Rated Voltage Toleran
±10 %
Specifications Alternating Current Ac Dielectric Strength Betwee
1,000 V
Specifications Alternating Current Ac Rated Voltage
250 V
Specifications Applicable Cable Diameter Solid Wire 60 Degree Ce
0.6 to 1.25 mm
Specifications Applicable Cable Stranded Wire 60 Degree Celsius
22-16 AWG
Specifications Applied Relay
G6B-1174P-FD-US [OMRON]
Specifications Approval
European Conformity (CE) | Underwriters Laboratory for Canada and United States (cULus) Listed
Specifications Approximate Packaged Weight
446 g
Specifications Approximate Weight
348 g
Specifications Base Material
Modified Polyphenylene Oxide (MPPO)
Specifications Case Material
Modified Polyphenylene Oxide (MPPO)
Specifications Cover Material
Polycarbonates (PC)
Specifications Current Consumption
⤠20 mA
Specifications Direct Current Dc Rated Voltage
24 V | 30 V
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
-15 to 55 ºC
Specifications Environment Storage Relative Humidity Rh
35 to 85 %
Specifications Environment Storage Temperature
-25 to 65 ºC
Specifications Insulation Resistance At 500 Volt V Direct Curren
â¥1,000 MΩ
Specifications List Price
430.95 USD
Specifications Number Of Relay Points
16-Point
Specifications Operation Indicator
Blue Light Emitting Diode (LED)
Specifications Power Indicator
Red Light Emitting Diode (LED)
Specifications Protection Structure
Ingress Protection (IP) 20 (International Electrotechnical Commission (IEC) Standard)
Specifications Rated Current
3 A
Specifications Rated Frequency
50 Hz | 60 Hz
Specifications Terminal Block Material
Polycarbonate
Specifications Terminal Pitch
â¥7.8 mm
Specifications Terminal Type
Screwless
Specifications Weight
0.2 lb
