-15 to 55°C Environment I/O Terminal Block
-15 to 55°C Environment I/O Terminal Block
SKU:PRO-5d1e7d
Versatile -15 to 55°C I/O Terminal Block with NPN/PNP input, 4-point relay, and robust construction for industrial connectivity.
Regular price
$77.95
Regular price
Sale price
$77.95
Unit price
per
Initiate Order
-15 to 55°C Environment I/O Terminal Block
$77.95
Quantity: 1
Claim Your Seller Account
-15 to 55°C Environment I/O Terminal Block
$77.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

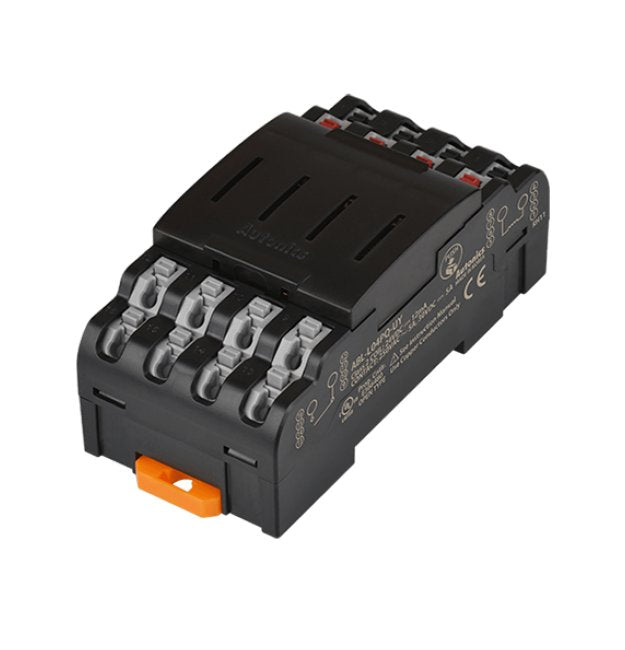

The -15 to 55°C Environment Input/Output (I/O) Terminal Block is a reliable solution for industrial connectivity needs. With NPN or PNP input compatibility and a 4-point PQ1a-24V relay, this terminal block ensures secure connections in temperature extremes. It features a durable construction with brass conducting plate, polyamide 66 terminal block material, and blue LED operation indicator. Meeting IP20 standards and CE/cULus certifications, this terminal block is designed for high performance and safety in varied environments.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Accessories Accessories
Jumper Bar: 1
Specifications 24 Volt V Direct Current Dc Rated Voltage Toleran
±10 %
Specifications Alternating Current Ac Dielectric Strength Betwee
300 V
Specifications Alternating Current Ac Rated Voltage
250 V
Specifications Applicable Cable Diameter Solid Wire 60 Degree Ce
0.6 to 1.25 mm
Specifications Applicable Cable Stranded Wire 60 Degree Celsius
22-16 AWG
Specifications Applied Relay
PQ1a-24V [MATSUSHITA (Panasonic)]
Specifications Approval
European Conformity (CE) | Underwriters Laboratory for Canada and United States (cULus) Listed
Specifications Approximate Packaged Weight
150 g
Specifications Approximate Weight
94 g
Specifications Base Material
Modified Polyphenylene Oxide (MPPO)
Specifications Case Material
Modified Polyphenylene Oxide (MPPO)
Specifications Conducting Plate
Brass
Specifications Current Consumption
⤠20 mA
Specifications Direct Current Dc Rated Voltage
24 V | 30 V
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
-15 to 55 ºC
Specifications Environment Storage Relative Humidity Rh
35 to 85 %
Specifications Environment Storage Temperature
-25 to 65 ºC
Specifications Insulation Resistance At 500 Volt V Direct Curren
â¥1,000 MΩ
Specifications List Price
77.95 USD
Specifications Number Of Relay Points
4-Point
Specifications Operation Indicator
Blue Light Emitting Diode (LED)
Specifications Protection Structure
Ingress Protection (IP) 20 (International Electrotechnical Commission (IEC) Standard)
Specifications Rated Current
5 A
Specifications Rated Frequency
50 Hz | 60 Hz
Specifications Terminal Block Material
Polyamide 66
Specifications Terminal Pitch
10.2 mm
Specifications Terminal Type
Screwless
Specifications Weight
0.2 lb
